Absolute Solutions Gear Warning Upgrade Kit For Piper PA-34-220T

0 Reviews 0 Answered Questions
$2695.00/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 05-28990
MFR Model# SA02798SE

Overview

Gear Warning Upgrade Kit installed under STC SA02798SE for Piper PA-34-220T (SN 34-8133001 through 34-8633031 and 3433001 through 3433172)

From operational experience, Absolute Solutions has noted numerous flaws with the factory design which causes operators to often experience:
  • Erratic or intermittent operation
  • Failure of the throttle position actuation system
  • Premature failure of gear horn
  • Increased maintenance and parts cost
  • Increased aircraft down time
The Gear Warning Upgrade will provide operators with a much more reliable way to achieve the same level of safety as the original system was designed to provide.

More durability
Our system incorporates a modern, piezo-electric gear horn with increased durability over the 565-288 horn. In fact, the factory horns are so unreliable, some operators replace multiple horns a year maintaining their Piper fleets. At an average cost of $800 a horn, costs quickly add up.

Better accuracy
In addition to a better horn, we replace the throttle position switches with a solid-state relay and two manifold pressure switches. This ensures accurate, repeatable horn operation, as any mechanical slop in the throttle controls has no bearing on switch actuation. The system can be tested and adjusted on the ground, eliminating the need for maintenance check flights.

Easy Installation
To make things easy, all factory wiring is retained. Only minor wiring modification is required.

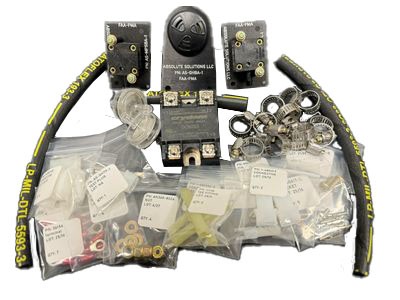

In The Box

  • (1x) Gear Warning Horn
  • (2x) Vacuum Switches
  • (1x) Solid State Relay
  • (2x) In line filter
  • Installation hardware
