ACS Free Flow One-Way Check Valve

$30.64/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 10630
MFR Model#

Overview

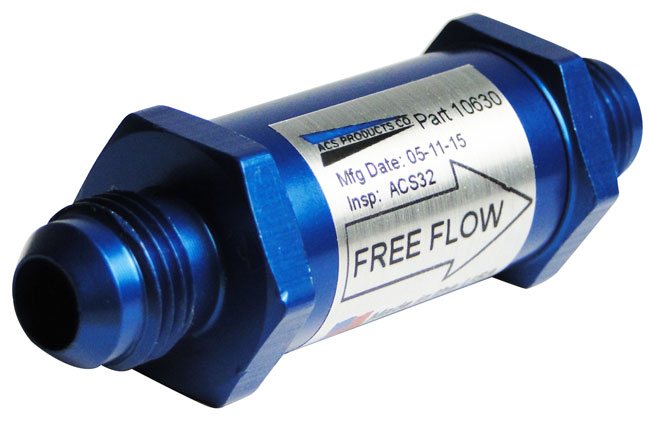

Prevents return fuel flow during normal operation but provides by-pass fuel feed in an emergency if the fuel pump fails. Wt. 1 oz., 2-7/8" long. Use with tube fittings for 3/8" dia. fuel line. Anodized for corrosion resistance.
Made in USA

Reviews

I can confirm that there is NO internal spring holding the shuttle valve in any particular position. Since this is described by ACS as 0 PSI for breakout, then this is expected, so Ill still rate it 5 stars. But because the operation is entirely influenced by gravity or fluid movement, it is very important to understand in which direction the shuttle operates, if you hope to plan out where to place the valve in a fuel system. The existing reviews that state simply vertical vs. horizontal dont help in this regard (vertical pointed up? or vertical pointed down?). So Ill describe as clear as I can how it operates: 1. If I put the valve to my mouth and blow in the direction of the arrow, of course air will flow no matter how I hold the valve. But thats not what were generally worried about. 2. Holding the valve vertically with the arrow pointed toward the sky, gravity causes the shuttle valve to rest in the closed position, and you get the behavior youd generally expect from a one-way valve: unable to blow air against the direction of the arrow. 3. But heres what matters... Holding the valve vertically with the arrow pointed toward the ground, you can blow air through the valve in BOTH DIRECTIONS! If you blow hard enough against the arrow, of course the shuttle valve closes. But if you blow gently, you can blow in both directions. 4. Holding the valve horizontally, the result is completely unpredictable, because the shuttle valve has no default resting position. Depending on how you shake it, sometimes you can blow air against the arrow. So be careful how you plan your design, especially if this is used in a fuel vent line for the purpose of preventing a puddle of fuel on the hangar floor. It seems to me that in all cases the best possible way to install this valve is arrow pointed to the sky.

Kenneth J
November 7, 2024

Simple, small, with two AN mail Fittings. Just what I needed for my fuel system.

Steven M Verified Purchase

One Way Check Valve 10630

October 27, 2024

Leaks when under pressure from the gravity feed of high wing. Requested replacement

Dan K Verified Purchase

One Way Check Valve 10630

April 6, 2024

Order received within 3 days and installed on the airplane on the same day. Exact product as ordered.

Guy S Verified Purchase

One Way Check Valve 10630

September 13, 2023

I replaced my old check valve same part number that was on my aircraft for 10 years, new one works as advertised.

Gary S
March 7, 2020

Installed in a gravity feed system, in parallel with a Facet boost pump. This valve is indeed free flow (zero PSI breakout pressure) and as such works well in the gravity feed system, when the pump is turned off. The pump is only turned on for extreme nose up attitudes.

Chris S
August 4, 2017

The item works great at sealing as a check valve. I had to open up and clean the seats from dust and once clean it worked great. I used it for vent and gas applications.

James E
June 3, 2017

Not as represented, will not operate in light flow conditions

Russell M Verified Purchase

One Way Check Valve 10630

November 5, 2021

It leaked, did not work

John A Verified Purchase

One Way Check Valve 10630

February 15, 2022

Tried two of these. Both leaked and I ended up with fuel all over the floor of my hanger.

Wayne L
December 24, 2017

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this ACS free flow one-way check valve use -6 AN flare fittings?

Yes, it uses 3/8" tube fittings, which is a -6 AN flare.

Q: What is the mechanism inside the ACS free flow one-way check valve?

Per ACS Products, it is a gravity flow piston. It only allows fuel flow in one direction.

Q: Can this ACS Free Flow One-Way Check Valve be used in any position?

Yes. This is for a free floating application, but can be mounted in any position.

Q: What is the maximum flow rate for this ACS check valve part# 10630?

0 PSI for breakout; 20 PSI max.

Q: Is there a pressure rating on this item? And what are the seals made of?

0 PSI for breakout; 20 PSI max. Seal are made of viton rubber.

Q: What is the interior flapper material (PTFE?)? Is this component rated for fuels containing ethanol?

The piston is made of Delrin and there is no rating for ethanol.

Q: Does ACS check valve 10630 have a bleed function?

No, this product does not have a bleed function.

Q: What are the failure modes which could prevent flow in the forward direction? Have you had any field reports of failure to flow in the forward direction?

We do not have any reports of failure to flow in the proper direction. There is only a plastic piston on the inside and even if it is put in wrong, it will still flow just not stop.

Q: What are dimensions of the ACS free flow one-way check valve? Is valve available with NPT one end and other end flare?

The dimensions are 2-7/8 long. This is not available in any other sizes or modifications.

Q: Is this ACS check valve an FAA/PMAd part approved for use on certified aircraft?

No, the 10630 is not FAA/PMA approved.
