Cessna 170 Engine Baffle Kit Powder Coat Black

0 Reviews 0 Answered Questions
From $1457.00 to $2721.00
Prices below incude GST
Main Image
Main Image
Description Part Number Price Buy
McFarlane C170-4952Brps Engine Baffle Kit
05-21647
$1602.70
Quantity
Cessna 170 1949-52 Engine Baffle Kit, Powder Coat, Black Seals
05-22495
$2993.10
Quantity
Subtotal $0.00
Add to Wishlist

Overview

**Powder Coat: Only color is Hammertone (Gray) Powder Coating**

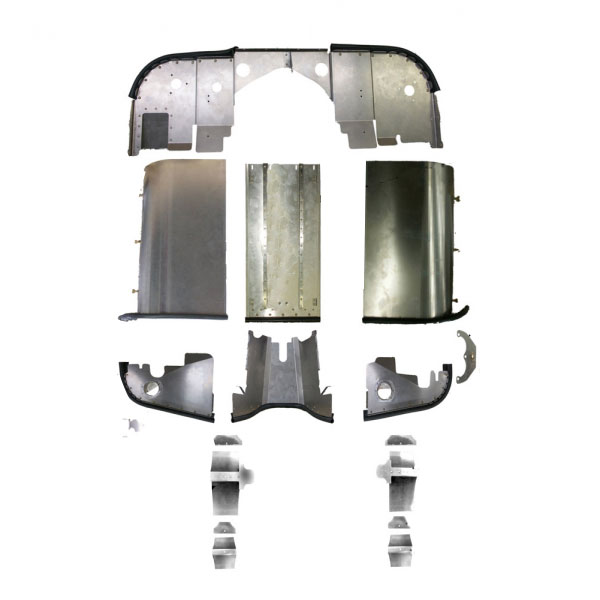

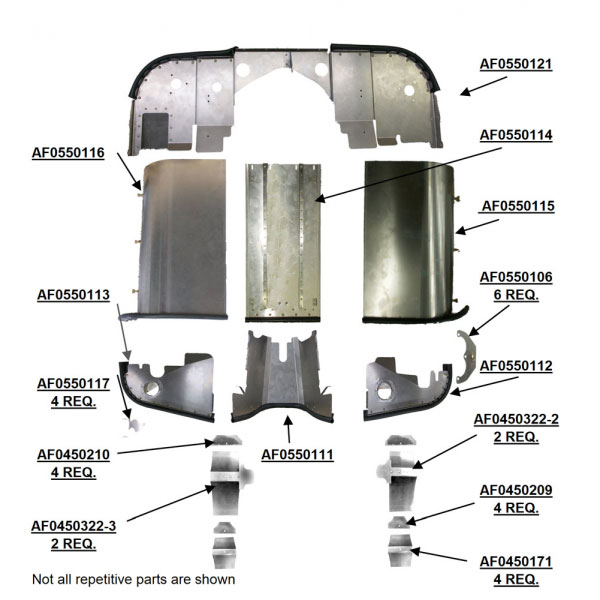

Complete Engine Baffle Components for Cessna 170 (Years: 1949-52).

These baffles are FAA/PMA approved, have the silicone seals attached, and arrive ready to install.

Airforms is the premier manufacturer of FAA-PMA replacement baffle components.

Note:
  • If aftermarket components of different dimensions have been installed, it is the installer's responsibility to adjust the baffles to fit. Components include: starters, alternators, exhaust, etc.
  • Mounting hardware is not included (nuts, bolts, screws, washers, retaining springs, and Tinnerman clips).

Features

  • Baffles are made of 6061-T6 aluminum with many improvements over the original baffling.
  • Improvements include: stainless steel brackets where needed, hard rivet construction, half inch backing plates on seals, and an improved fit to increase engine cooling.
  • All Airforms engine baffles are designed to replace the factory installations and are individually interchangeable.
  • The baffle seals are fiberglass reinforced, high temperature silicone: black is standard. Orange or blue are available for an extra charge.
  • We also sell seal kits if your metal baffle pieces are in good shape.

Eligibility

  • S/N: C170A 18730 thru 20266
  • C170B 20267 thru 25372
  • FAA-PMA Approved
  • Engine: Continental C-145-2 or O-300
