Seat Belts And Shoulder Harnesses - For Navion

From $217.95 to $837.00
Prices below incude GST
Description Part No. Price Buy

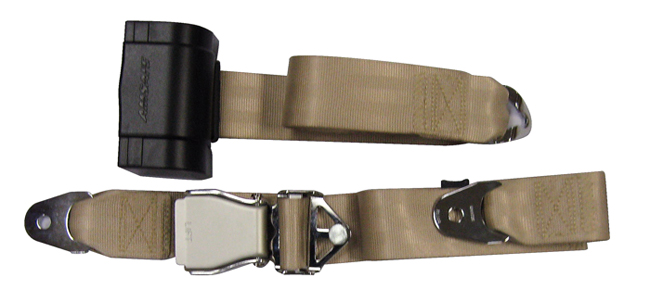

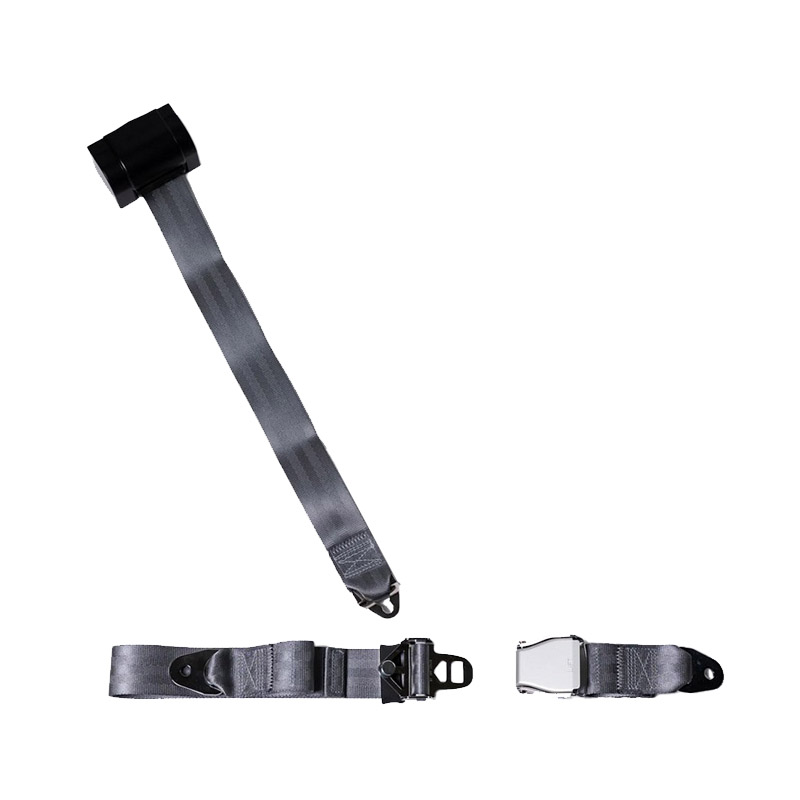

Bucket/Drill Tower - Front Pilot or Co-Pilot IR
05-15042
$920.70
Quantity
Bucket/Drill Doublers - Front 3 Pt. Pilot or Co-Pilot DIR
(Mounts to Seat)
05-15043
$920.70
Quantity
Black Standard Tube Frame -
Front 3 Pt. Pilot or Co-Pilot DIR
05-15045
$920.70
Quantity
Gray Standard Tube Frame -
Front 3 Pt. Pilot or Co-Pilot DIR
05-15046
$920.70
Quantity
Fawn Standard Tube Frame -
Front 3 Pt. Pilot or Co-Pilot DIR
05-15047
$920.70
Quantity
Rangemaster - Inertial 3 Pt. Reel Restraint for either Pilot or Co-Pilot
05-15048
$920.70
Quantity

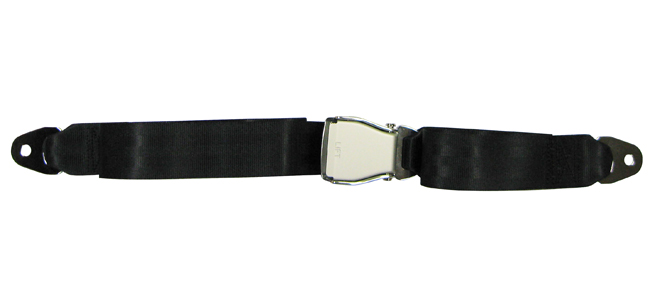

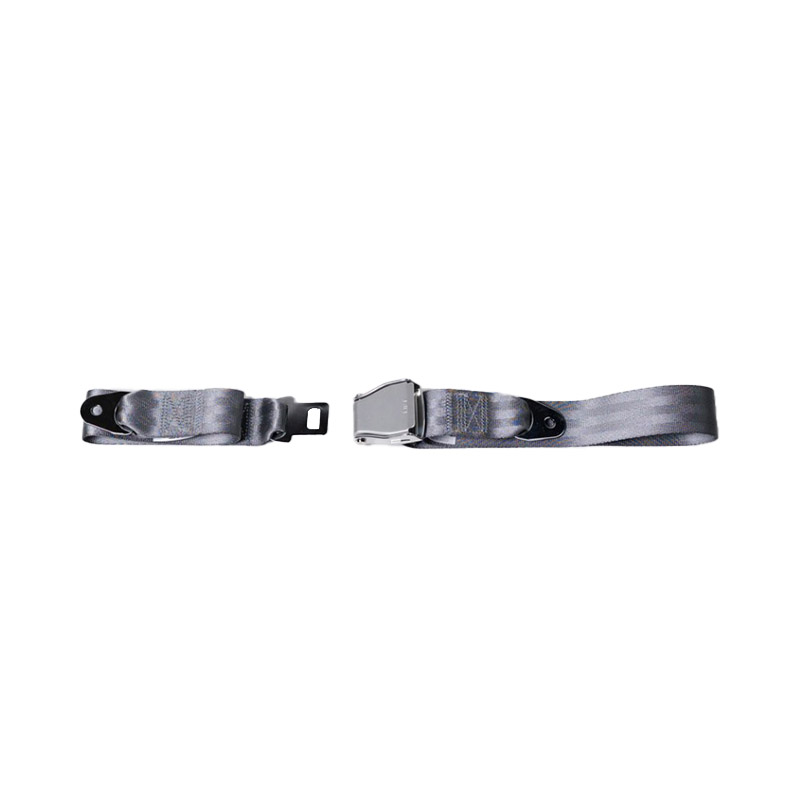

Rear Seat Lap Belt - 2 Pt. Passenger Position
05-15049
$239.75
Quantity

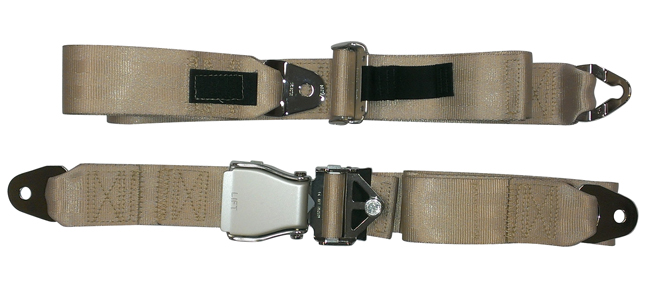

Rear Seat - 3 Pt. Restraint FS
05-15050
$794.20
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Navion Shoulder Harness Kits
2 Point Read
3 Point Diagonal Systems
  • Complete New Belt Assemblies
  • Shoulder and Lap Belts for one seat
  • All Required Hardware
  • Instruction Manual
  • Supplemental Type Certificate

Documents

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of these belts,extended and retracted? Also the width of webbings?

The buckle side of the lap belt is fixed at 20" the connector side is 46" but can be adjusted in. The harness is 66" fully extended and is 26" retracted. The webbing is 2" wide.
