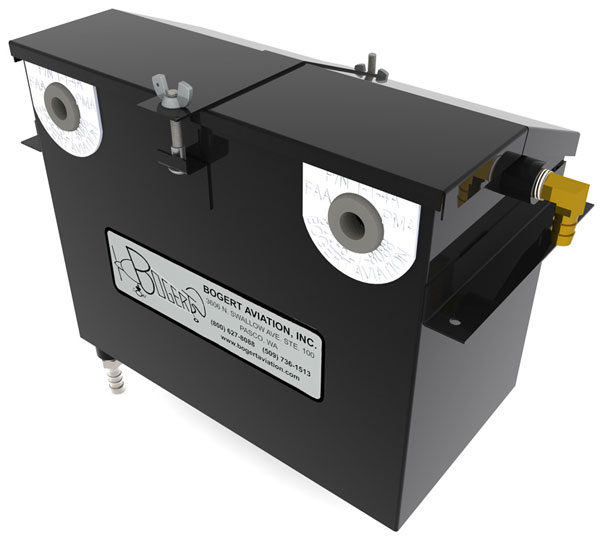

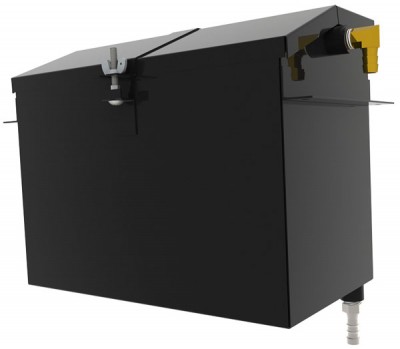

Bogert Piper Stainless Steel Powdercoat Black Battery Boxes With Lids - STC Sa01582Se

From $1260.00 to $2022.00
Prices below incude GST
MFG PN Description Spruce PN Price Buy
06M-21524-02BAPA-18 / 24 / 30 / 39
11-06954
$1386.00
Quantity
06M-14064-07BAPA-20 / 22
11-13480
$1386.00
Quantity
06M-17564-00BAPA-23
11-13481
$2224.20
Quantity
06M-25338-00BAPA-24-260
11-13482
$1414.60
Quantity
06M-63888-00BAPA-28 / 32
11-13484
$1386.00
Quantity
06M-35845-02BAPA-28-161
11-13485
$1752.30
Quantity
06M-44729-00BAPA-31
11-13486
$1758.90
Quantity
06M-68802-00BAPA-32
11-13487
$1386.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Many battery boxes in aircraft are 30, 40 or 50 years old and battery acid, vibration as well as time have taken their toll. Acid leaking into the belly of your airplane can severally damage the structure where you can't see it, between the laps of aluminum and the rivets.

Eligibility

06M-21524-02BA

Serial Number Range

PA-18

18-1215 through 18-8309025

PA-18 A - AS

ALL SN

PA-24 180

PA-24-103 through 24-3687

PA-24 250,260,260B,260C, 400

ALL SN

PA-30, 30B, 20C, 30C/R

ALL SN





06M-14064-07BA

Serial Number Range

PA-20 135

SN 934 & up

PA-20 S-135

ALL SN

PA-22 108

ALL SN

PA-22 135

SN 1021, 1022, 1024 & up

PA-22 S-135,150,S150,160,S160

ALL SN





06M-17564-00BA

Serial Number Range

PA-23

SN 23-0001 to 23-1182

PA-23 160

SN 23-1183 to 23-1870

PA-23 235

SN 27-505 to 27-622

PA-23 250

SN 27-001 to 27-504





06M-25338-00BA

Serial Number Range

PA-24 260

SN 24-4247

PA-24 260

SN 24-4300 to 24-4782

PA-24 260

SN 24-4784 to 24-4803





06M-63888-00BA

Serial Number Range

PA-28 140 THRU PA-28S-160

ALL SN

PA-28 161

SN 287716001 through SN 288216236

PA-28 180B THRU PA-28 R201T

ALL SN





06M-35845-02BA

Serial Number Range

PA-28 161

SN 28-8316001 to 28-8616057

PA-28 161

SN 2816001 to 2816109





06M-44729-00BA

Serial Number Range

PA-31

SN 31-712 to 31-900

PA-31

SN 31-7400991 to 31-74001234

PA-31 325

SN 31-7400990

PA-31 350

SN 31-5001 to 31-5003

PA-31 350

SN 31-7305005 to 31-7405257





06M-68802-00BA

Serial Number Range

PA-32 260,B,C,D,E

ALL SN

PA-32 300,B,C,D,E,S

ALL SN

PA-32 301

ALL SN

Features

  • Direct bolt on replacement for Piper metal and plastic battery boxes
  • Heavy gauge stainless steel construction
  • Brass screw-in vent tubes
  • Many models approved, others pending approval
  • Made in the USA

Benefits

  • STC/PMA FAA approved for most Piper Aircraft
  • Protects your investment
  • Replaceable vent fittings
  • Eliminates acid leaks in the aircraft
  • Improves starting performance
  • Eliminates extra connection on outside of the battery box
  • Positive battery box venting
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are the cables included to connect the ground to airframe, positive to solenoid?

No, you will need to add P/N# 11-13491 to your order. This will be the positive and negative cable.
