Cessna Seat Roller Kit 3 - FAA/PMA Approved

0 Reviews 0 Answered Questions
$170.34/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 13-25661
MFR Model# SEAT KIT-3

Overview

**These FAA-PMA replacement seat parts will assist you in complying with parts replacement requirements of A.D. 2011-10-09. This A.D. requires the periodic inspection and replacement of the seat components of the entire Cessna light aircraft fleet. These parts are direct replacements for the wear-related seat components.**

One Seat Kit is used for each seat. It is recommended that both front seats are serviced at the same time.

Affordable Aviation offers SEAT-KT-3 for use on all Cessna 150/152 series aircraft, and all Cessna single engine aircraft built before 1963.

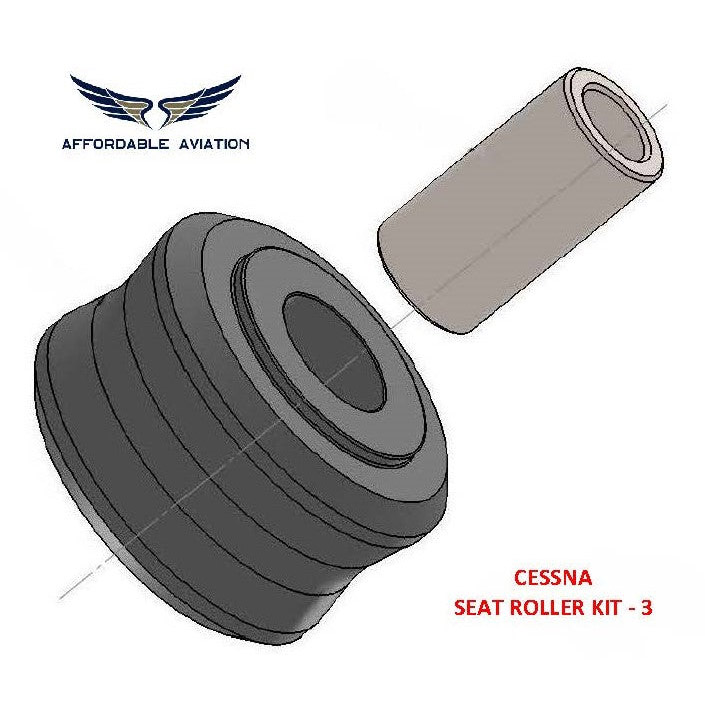

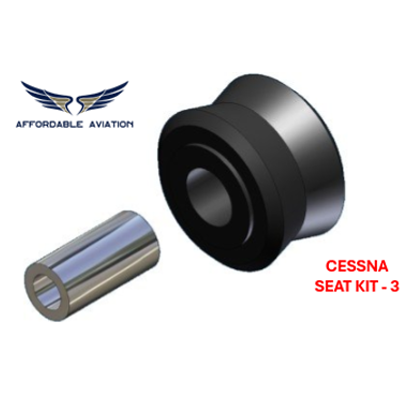

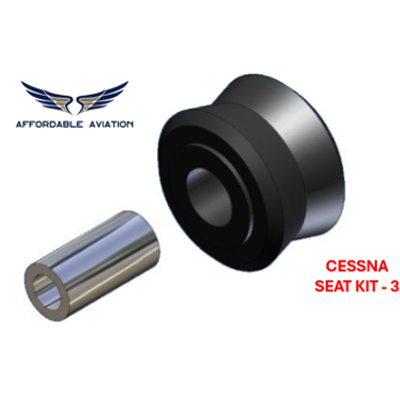

This SMALL roller has an approximate diameter of 7/8”. The kit contains NEW neutral color white Nylon Rollers, and NEW Steel Bushings these replace worn Cessna parts, allowing the front seat(s) to move easily fore and aft on the seat track rails. A welded steel tubing seat frame easily identifies these seats. It is also used with some Cessna twin engine aircraft.

The kit contains the same components as offered individually by Cessna/Textron p/n 0311310 & 311586.

Features

  • The nylon roller(s) are made from the highest quality Nylatron® which offers greater wear resistance, high mechanical strength, lower surface friction, stiffness, hardness, and greater rigidity which all adds up to a superior and durable/long service life roller.
  • The steel bushing is made from super tough moly chrome steel with a clear zinc plating finish for corrosion resistance.

Specifications

  • Roller Diameter – 7/8”

In The Box

  • (4) 0311310, Roller
  • (4) 311586, Bushing
