Curtis Superior Removal Tools
| Name | Works with valve | Part No. | Price | Buy |
|---|---|---|---|---|
| CST-716 | CAA-1250, 1550, 4850, 7450, 9950, 36150, CCB-36750 | 12-02244 | $65.95 | |
| CST-78 | CCA-1400, 1700, 39550, 39560, CCB-3700 | 12-02245 | $80.03 | |
| CST-916 | CCA-1300, 1600, 3600, 4800, 4900, 5900, 39000 | 12-02246 | $65.95 | |

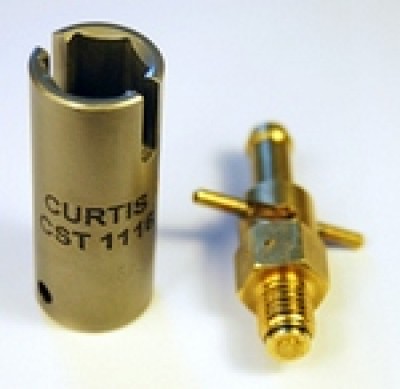

| CST-1116 | CCA-1350, 1650, 2440, 2450, 2460, 4320, 4950, 5400, 5800-1 | 12-02090 | $65.95 | |

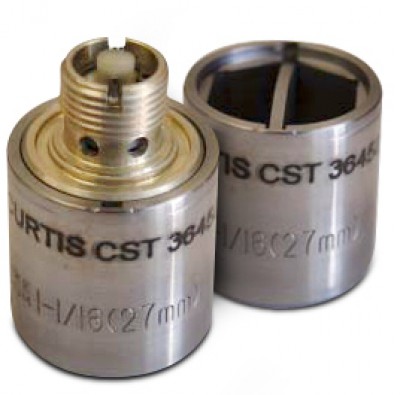

| CST-36450 | CCB-36450, CCB-36450-5 | 12-02280 | $83.38 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
Curtis Superior Valve Co., Inc. has added a new product line to help with the installation and removal of Curtis flush mounted valves without damage. We have designed a socket that will eliminate the problem of damage as well as valve torque. CST-716 Installation & removal of Curtis valves with 7/16" hex. Tool is used to to torque valves to desired specifications and also prevents valve damage on installation and removal. Used on the following valves: CAA-1250, 1550, 4850, 7450, 9950, 36150, CCB-36750 CST-78 Installation & removal of Curtis valves with 7/8" hex. Tool is used to to torque valves to desired specifications and also prevents valve damage on installation and removal. Used on the following valves: CCA-1400, 1700, 39550, 39560, CCB-3700 CST-916 Installation & removal of Curtis valves with 9/16" hex. Tool is used to to torque valves to desired specifications and also prevents valve damage on installation and removal. Used on the following valves: CCA-1300, 1600, 3600, 4800, 4900, 5900, 39000 CST-1116 Installation & removal of Curtis valves with 11/16" hex. Tool is used to to torque valves to desired specifications and also prevents valve damage on installation and removal. Used on the following valves: CCA-1350, 1650, 2440, 2450, 2460, 4320, 4950, 5400, 5800-1 INSTALLING AND REMOVING FLUSH MOUNTED For installing and removing flush mounted fuel valves PN CCB-36450 & CCB-36450-5 |
Reviews
Good product
Verified Purchase
Curtis Inst Tool Cst-716
Excellent tool and much better than worrying about rounding off the drain trying to remove or install. A person could try to make their own but if it doesn’t align correctly it could damage the drain.
Verified Purchase
Curtis Inst Tool Cst-716
Made the job of installing the Curtis drain a piece of cake …. too easy :)
Verified Purchase
Curtis Inst Tool Cst-1116
