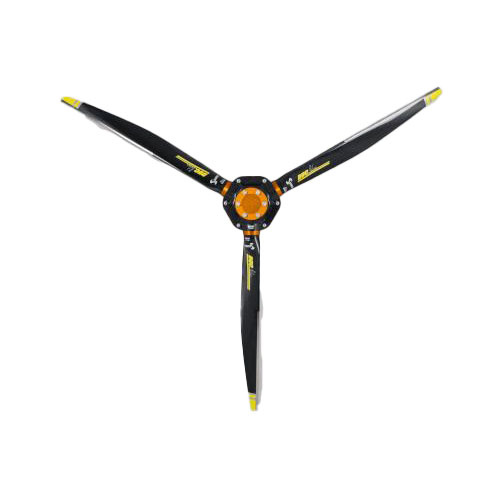

DUC Inconel® Hydraulic Cobra Propeller
Select Blade
2 Blade3 BladeSelect Direction
RightLeftPrice Includes GST
Overview
|
The COBRA range of propellers is the first to have been developed for aircraft with a power rating of over 150 hp.
Due to its size and strength, it is capable of handling power ratings from 150hp to 315hp. Its unique high efficiency design is optimized for direct drive engines. Its aerodynamic design allows a "Constant Speed" effect, limiting engine speed variations between static and dynamic phases. This propeller provides high efficiency over the entire flight envelope:
Their composite structures are defined to resist maximum stresses in torsion and bending. This is why the "constant speed" effect is not related to the deformation of the blade, but to its geometry and its particular profile. Due to its specific geometrical definition, excellent performances are obtained both in aerodynamics and acoustics, but also regarding fuel consumption reduction. |
Features
- Tractor configuration, Right hand (Clockwise)
- 2-blade (6.4kg / 14 lb) or 3-blade (8 kg / 18 lb)
- Diameter from 67 to 83 inches (1700mm to 2100mm)
- Shielding leading edge in Inconel®
- 2000 hours TBO
- SAE2 bolt pattern (PCD 4-3/4”)
- Capable mounting: SAE2AN6/SAE2AN7/SAE2AN8
- "-R" Reinforced version after 215 hp
Power Configuration
- AN6, AN7 and AN8
Applications
- Engines 150-315hp: Lycoming, Continental, Titan, UL
Documents
- Installation Manual (PDF)
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
