Duc Flash Hub

Select Blade:
2 Blade3 Blade
Price Includes GST
Quantity
Add to Wishlist

Overview

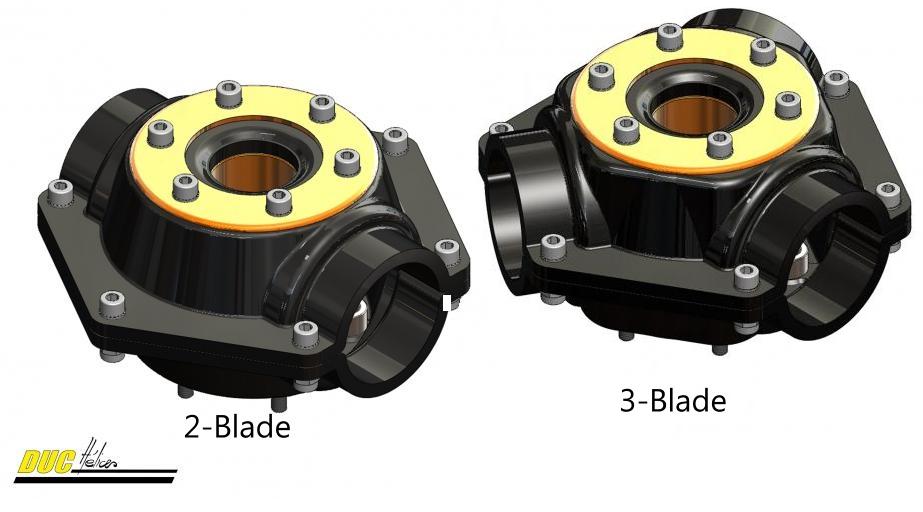

The Flash Hub for 2-Blade and 3-Blade Flash, Flash-R and Flash-2 Propellors.

Rotax/Jabiru mounting

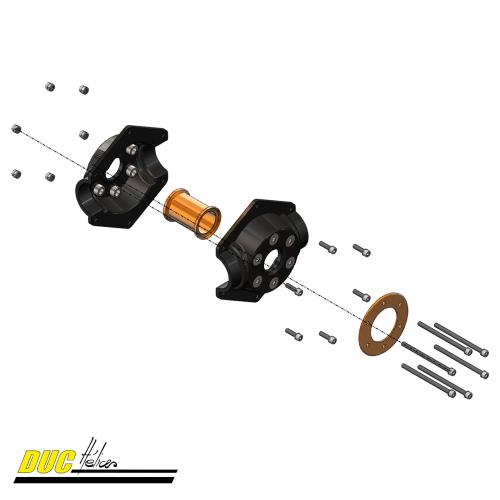

    Hub assembly: Screws CHC M8, Nylstop locking nuts & pin contact washers
    Propeller fixation: Screws CHC M8
    (Screw length adapted according the mounting direct or with spacer)
    Hub clamping washer: Aluminum with holes Ø8mm on P.C.D. Ø101.6mm
SAE1/SAE2 mounting
    Hub assembly: Screws AN5, locking nuts & standard washers Propeller fixation:
    SAE1: Screws AN6 (3/8") / SAE2: Screws AN8 (1/2")
    (Screw length adapted according the length of the spacer)
    Hub clamping washer: Aluminum
    SAE1: Holes for screws AN6 (3/8") on P.C.D. Ø4-3/8" (Ø111.125mm)
    SAE2: Holes for screws AN8 (1/2") on P.C.D. Ø4-3/4" (Ø120.65mm)
