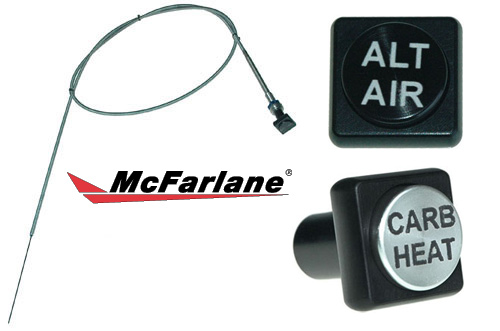

McFarlane MC6160 Universal Push To Unlock Control
Overview
Perfect for carburetor heat or alternate air controls for the experimental/homebuilt market. These are identical to the MC6150 controls but have a square knob. Available with black knob and black or clear (silver) anodized aluminum push-button.
|
Features
- Quality stainless steel construction
- Teflon™ lined for smooth operation
- Heavy duty for strength and long life
- Available in 6, 8, and 12 foot lengths
- May be trimmed to length
- Anodized aluminum square black knobs with black or clear (silver) push buttons
- Meets FAA regulation 23.781 for carb heat and alt air control knob shape
Specifications
- Conduit: 0.24 inch OD Teflon™ lined wound conduit
- Inner wire: 0.071 inch diameter music wire
- Travel (stroke): 3" maximum
- Maximum work loads: 25lbs (Pull), 10lbs * (Push)- Max push load dependent on wire size, length of trimmed wire (unsupported by conduit), geometry of wire rigging, and configuration of actuator
- Operating temp: -65 to 450 F (Operating temperature of knob/guide tube assembly: -65 to 250 F)
Documents
- Engraving Request Form (PDF)
- Technical Drawing (PDF)
Reviews
Worked great. Dont pull the knob back too far when installing or the 5 piece will fall out and possibly cause the small metal ball to fall into the aircraft. The order does, however, come with 2 spare metal spheres.
Verified Purchase
MC6160-071BB072 Push To Unlock
