De-Ice Brush Clusters From Rapco For Mccauley
| Image | Rapco Part No. |
Block No. | Installation | PN | Price | Buy |
|---|---|---|---|---|---|---|
 | RAB40012 | C40010 | Cessna: T182, TR182, 340A, 402C, 404, 414A, 421C, 425 | 05-01326 | $163.62 | |
 | RAB40046 | C40055 | Cessna: U206G, TU206G, 210N, P210N, T210N, 210R, T210R, 310P, T310P, 310Q, T310Q, 310R, T310R, 441 | 05-01328 | $284.90 | |
 | RAB40189 | C40179 | Cessna: T182, TR182, 340A, 402C, 404, 414A, 421C, 425 | 05-01327 | $180.13 | |
 | RAB40193 | C40187 | Cessna: U206G, TU206G, 210N, T210N, 210R, P210N, T210R, T303, 441 | 05-01329 | $184.53 | |
 | RAC40256-1 | C40257 | Raytheon: F33A, V35B, A36, B36TC, 58, 58A, 58P, 58PA, 58TC, 58TCA, B200, B200C, B200CT, B200T | 05-01330 | $153.73 | |
| RAC40256-2 | C40257 | Raytheon: F33A, V35B, A36, B36TC, 58, 58A, 58P, 58PA, 58TC, 58TCA, B200, B200C, B200CT, B200T | 05-01331 | $153.73 | |
 | RAB40332 | C40331 | Fairchild: SA227-AT, SA227-AC, SA227-BC, SA227-CC, SA227-DC | 05-01334 | $204.33 | |
 | RAC40371-1 | C40363 | Raytheon: B200, B200C, B200T, B200CT, A200CT | 05-01332 | $177.09 | |
| RAC40371-2 | C40363 | Raytheon: B200, B200C, B200T, B200CT, A200CT | 05-01333 | $177.09 | |
| RAC40464-1 | C40463 & C40685 | Beechcraft: 95-55, 95-A55, 95-B55, 95-B55A, 95-B55B, (T42), 95-C55, 95-C55A, 95-D55, 95-D55A, 95-E55, 95-E55A, A200CT (RC-12K), A200CT (RC-12P), A200CT (RC-12Q) | 05-13270 | $312.35 | |
| RAC40464-2 | C40463 & C40685 | Beechcraft: 95-55, 95-A55, 95-B55, 95-B55A, 95-B55B, (T42), 95-C55, 95-C55A, 95-D55, 95-D55A, 95-E55, 95-E55A, A200CT (RC-12K), A200CT (RC-12P), A200CT (RC-12Q) | 05-13271 | $312.35 | |
| RAC40522-1 | C40660 | Cessna: 182S, 182T, T182T, 206H, T206H | 05-13273 | $263.94 | |
| RAC40522-2 | C40660 | Cessna: 182S, 182T, T182T, 206H, T206H | 05-13274 | $270.55 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
These McCauley De-Ice Brush Clusters from Rapco are FAA-PMA approved

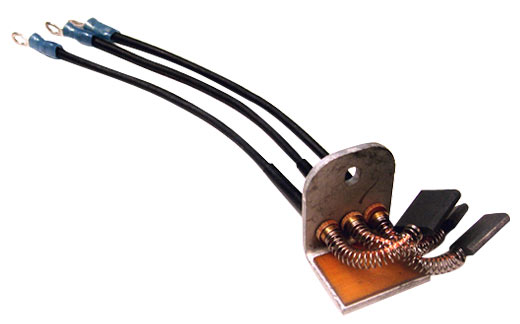

Brush Clusters for McCauley Brush Blocks Brush cluster replacements for McCauley block assemblies. They come with brushes, springs, leads and terminals all attached to an aluminum mounting bracket. There are either two or three carbon brushes per cluster depending on the part number. When ordering, it is important to remember that there is one block assembly per engine, and two brush clusters are required for each block assembly. If the brush cluster has a part number ending in -1 or -2, one of each dash number should be ordered per block assembly. De-Ice Application Guide Download Complete Rapco Catalog PDF |
Reviews
This brush set after removal of one of the three brushes was a replacement for the slip ring of my MT propeller speed control unit. The other bonus was the spare brush enabled me to replace the faulty brush, so now I have a spare. Win Win!
Verified Purchase
Rapco RaB40012 Deice Cluster
worked great, better product
Verified Purchase
Rapco RaB40189 Deice Cluster
Works as it should.
Verified Purchase
Rapco RaB40046 Deice Cluster
Verified Purchase
Rapco RaB40189 Deice Cluster
One of the phenolic buttons (on bottom of spring) was slightly larger than the recess in the brush block holder. Required delicate rework to make assembly fit properly.
