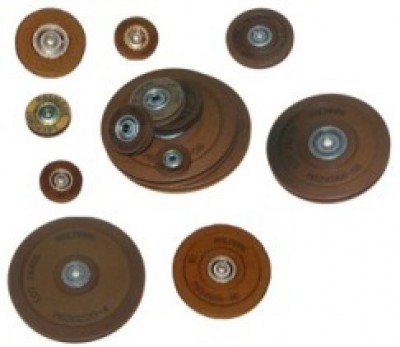

Pulley Kit Pull-Kt-22
MFR Model# PULL-KT-22
- JUMP TO
- Overview
- In The Box
- Reviews
- Q&A
- View in Catalog
Overview
|
This kit contain all pulleys and cotter pins required to replace all flight control system pulleys in one airplane. Save Time and Money Kits save time and money because we have done all of the tedious work to research the part numbers and quantities required for each aircraft. The only thing that you must know is the serial number of your airplane. Improved Bearings All MCS378 series FAA-PMA pulleys used in pulley kits feature high quality sealed precision ball bearings. This style of bearing is far superior to low grade, open seal bearings used in the Cessna S378-()L light duty series pulleys that they replace.
|
In The Box
| Part Number | Part Number | Description | Quantity |
|---|---|---|---|
| MCS378-1 | 05-03422 | Pulley | 13 |
| MCS378-2 | 05-03423 | Pulley | 2 |
| MCS378-3 | 05-03424 | Pulley | 10 |
| MCS378-4 | 05-03425 | Pulley | 16 |
| MS20220-1 | MS20220-1 | Pulley | 2 |
| MS24665-132 | MS24665-132 | Cotter Pin, 1/16" X 1/2" | 25 |
| MS24665-134 | MS24665-134 | Cotter Pin, 1/16" X 3/4" | 25 |
| MS24665-140 | MS24665-140 | Cotter Pin, 1/16" X 1-1/2" | 10 |
| MS24665-155 | MS24665-155 | Cotter Pin, 1/16" X 1" | 10 |
| MS24665-281 | MS24665-281 | Cotter Pin, 3/32" X 1/2" | 10 |
| MS24665-285 | MS24665-285 | Cotter Pin, 3/32" X 1" | 10 |
| MS24665-287 | MS24665-287 | Cotter Pin, 3/32" X 1-1/4" | 10 |
| MS24665-355 | MS24665-355 | Cotter Pin, 1/8" X 1-1/4" | 10 |
| MS24665-357 | MS24665-357 | Cotter Pin, 1/8" X 1-1/2" | 10 |
| S1710-1 | S1710-1 | Pulley | 1 |
| S394 | S394 | Pulley | 3 |
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
