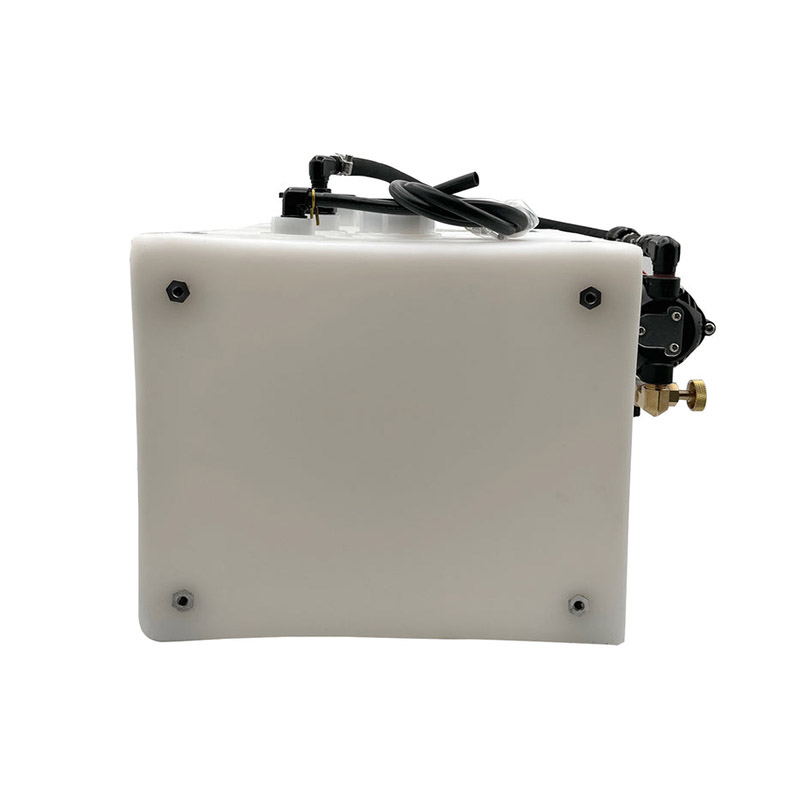

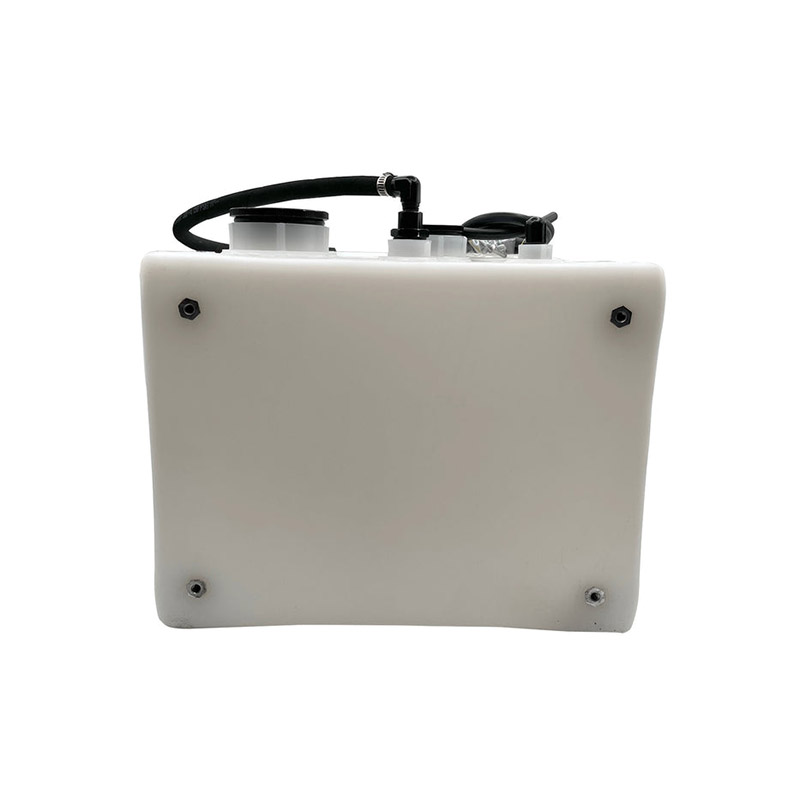

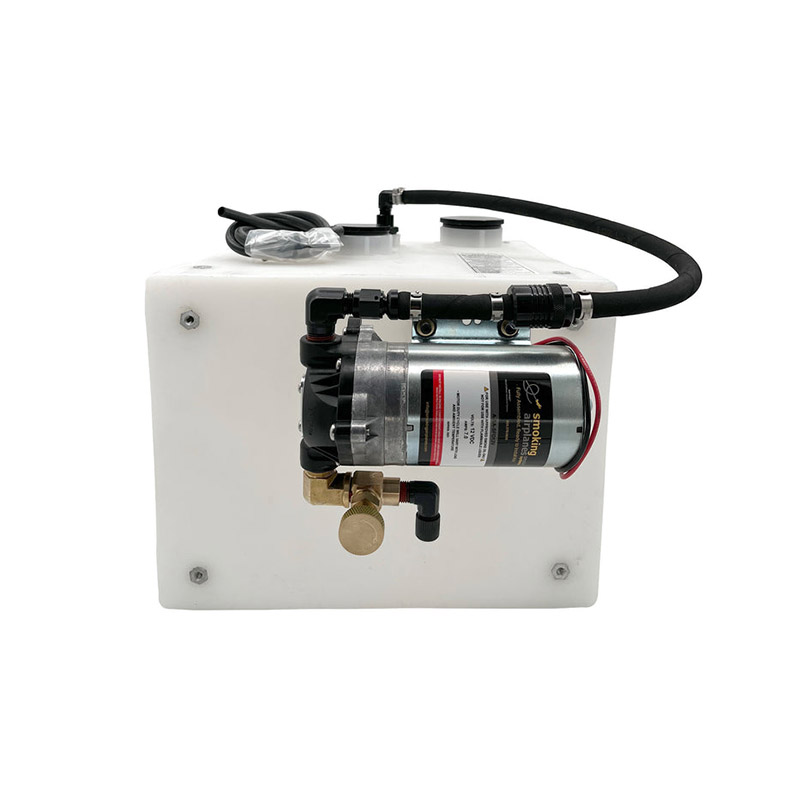

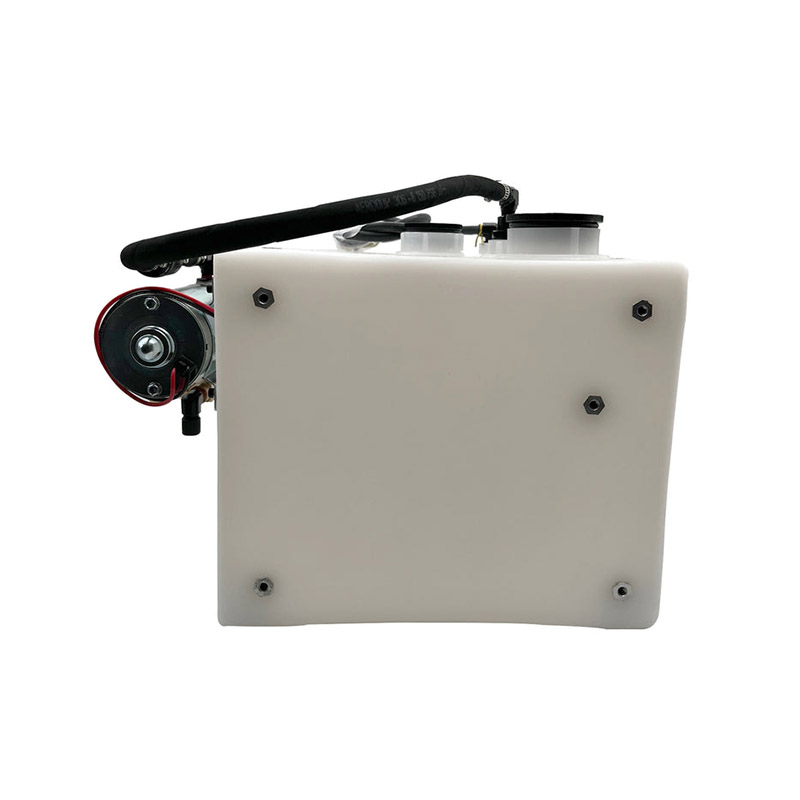

Smoking Airplanes Smoke System 5.5H
$1841.40/Each
Price Includes GST
Part# 05-02891
MFR Model# 5.5H
MFR Model# 5.5H
Overview
| Smoking Airplanes 5.5H Smoke System 5.5 Gallon |
Features
- Rated for 18g
- 12v or 24v power ok
- Suitable for all aircraft
- Pump flow: 1.8 +/- GPM
- Spray rate: 0.8 +/- GPM
- Adjustable with incl valve
- Tank capacity: 5.5 gallons
- Total run time: 7+/- minutes
- Typical installation time: 1 day
- Ready for External Fill Kit option
- Engineered for continuous inverted flight
- Strong monolithic tank construction (no seams)
- See successfully earned FAA Field approvals here
- Oil level quickly & easily determined (tank is transparent)
- Tank easily removed and re-connected (when space is needed)
- Note: Fasteners for attaching brackets to aircraft not included
Specifications
- DIMENSIONS:
- Pump height: 4"
- Horizontal tank, without pump: 13.25″ x 12″ x 11.5" (LxWxH)
- WEIGHT:
- Smoke System (full): 69 lbs
- Smoke System (empty): 23 lbs
Documents
In The Box
- Oil filter
- Electronics
- Check valve
- Suction hose
- Piston injector (1)
- Pressure hose (10')
- Stainless steel hose (3')
- 12v pump (& 24v to 12v converter)
