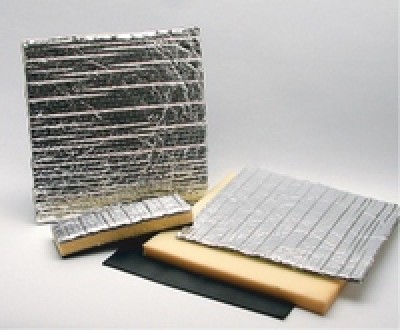

Soundex™ Deluxe Aircraft Soundproofing & Materials Package

Price Includes GST
Quantity
Add to Wishlist

Overview

SoundEx™ is a premium aircraft soundproofing / insulation that incorporates excellent vibration damping and noise absorption properties. SoundEx™ is a superior product compared to other products on the market because of it's thermal qualities, adds less weight to aircraft (6.11oz. per sq. ft. for 1" thickness and 5.8 oz. per sq. ft. for 3/4" thickness), and affordability. Stop the yelling and make flying fatigue a thing of the past. Improve your quality of flight with SoundEx™.

Decibel Reduction Data
Decibel reductions will vary depending upon how well your aircraft is currently insulated. Our latest data indicate that you should expect noise level reduction from 4-7 dB(a) and 10-15 dB(c). From singles and light twins to corporate jets, SoundEx™ is the noise reduction option of choice. Pilots and passengers can fly and communicate in comfort.

Flammability Requirements
All materials are manufactured to meet requirements for FAR 23:856 / FAR 25:856 Part II. Aircraft specific testing may be required for return to service.

Deluxe Packages include: Materials & Cutting Patterns

Reference Chart

Number

Aircraft Model

Part Number

SX-250
Footage

SX-01-DX

Bonanza 35-E35

PN 05-04256-1

N/A”

SX-02-DX

Bonanza F35-M35

PN 05-10770-1

N/A”

SX-03-DX

Bonanza N35-P35, C33-E33, and F33C
(and older with long 3rd window added)

PN 05-04312

N/A”

SX-04-DX

Bonanza/Baron S35-V35 F33 A55-B55
(and older with Large Baggage And Long Third Window Added)

05-04313-1

N/A”

SX-05-DX

Bonanza/Baron F33-G33 and B55-E55
(with extended baggage)

PN 05-04314

N/A”

SX-06-DX

Bonanza/Baron 36-A36 and B58(through 1978)

PN 05-04315

N/A”

SX-07-DX

Bonanza/Baron A36-B36 and B58
(1978 and newer)(with extended baggage)

PN 05-04316

N/A”

SX-11-DX

Comanche PA24/PA30 (through 1963)
(*Floor not drilled for access)

PN 05-04320-1

N/A

SX-12-DX

Comanche PA24/PA30 (1964 and 1965)

PN 05-04321-1

N/A

SX-13-DX

Comanche PA24/PA30 (1966 and newer)

PN 05-04322-1

N/A

SX-30

Vans RV-8 (Firewall, Sidewalls, Belly)

PN 05-04349-1

N/A

SX-40

Vans RV-10 (Firewall, Sidewalls, Roof, Belly)

PN 05-04350-1

N/A

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the difference between the basic Beech B55 Soundex kit and the deluxe kit?

The basic kit is the material for the sidewall above the floor/roof. The deluxe kit is the basic kit plus floor/belly.

Q: Does the bonanza f35 kit include the firewall?

No, you will need P/N# 05-15421 for the firewall kit on a Bonanaza F35.

Q: What does the RV-8 kit contain? Is insulation for the floor, sidewall, firewall, rear seat back included? Is canopy skirt insulation included? Is the insulation 1 or 3/4 thick?

Per Supplier, "RV-8 takes 5- SX-750 (.75)Sides , belly and 1- SX-580F (.50) firewall"

Q: What all is included in PA24-250 kit? I would like to do entire cabin.

This would be the kit you want. The deluxe kit includes the floor and sidewalls.

Q: Does the RV10 Kit come pre cut and Does it have an adhesive backing??

These are not precut, the patterns are laser engraved to the backside of the materials. They are 1/4" oversized for a friction fit, they have no adhesive backing.
