Prestretched Control Cable
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview
|

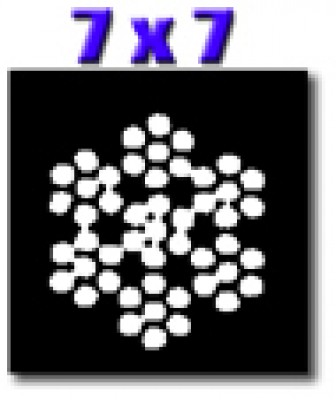

These control cables are pre-stretched for closer tolerance applications and to reduce stretching following installation. The major difference between aircraft and commercial cable is the lubrication applied to aircraft cable, which provides substantially better fatigue life than non-lubricated commercial cable. Aircraft cable requires extensive extra testing, documentation and certification to meet military specifications. We obtain our aircraft cable from domestic sources and the cable is certified to MIL-DTL-83420 and QPL Certified. Unit of measure is feet. 7 X 7 Flexible Control Cable Has seven strands of seven wires each. Used for control purposes where extreme flexibility is not required but where abrasion is a factor. 7 X 19 Flexible Control Cable Has seven strands of 19 wires each. Its greater metallic area makes it stronger than 7 X 7 cable. Because of its fine wires the best service is obtained where abrasion is not too severe. These same wires, however, make it flexible to meet severe bending. |
Documents
- Tech Data Sheet (PDF)
Reviews
As advertised.
Verified Purchase
Pre-Stretched Control Cable 1/8 7X19 Galv
Looks like better quality than the same I got from Amazon. So Ill be installing this instead.
Verified Purchase
Pre-Stretched Control Cable 1/16 7X7 Stainless Steel
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, we do not send sample material, however we have no minimum order so you can place an order for a small amount to test with.
Yes. We have certs / test results available. Please request at time of order.
