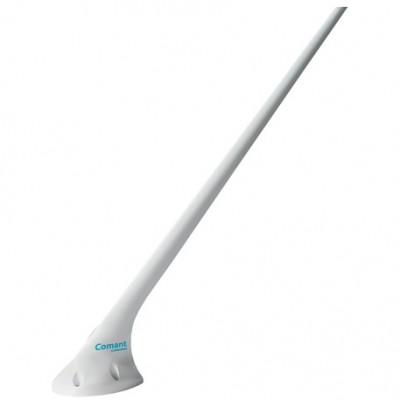

CI-2480200 Comant Antenna
MFR Model# CI-2480-200
Overview
|
Frequency • 1575.42 MHz 26.5dB Gain 118 - 137 MHz VHF The design that started a revolution in multifunction antennas for general aviation. Combines both GPS and VHF Com functions in a single footprint. Same 4-hole mounting configuration as our popular CI 121 VHF and CI 420 GPS antennas. Separate connectors for GPS and VHF, GPS is protected from VHF harmonics with our exclusive built-in 80dB harmonic suppression filter. The CI 2480-200 GPS function is designed for use with popular panel mount GPS systems that require 26.5dB gain. The CI 2480-200 is standard equipment on many aircraft OEMs including Cessna, Mooney and Piper. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
Specifications
- Frequency: 118-137 MHz
- VSWR: 2.5:1
- Polarization: Vertical
- Radiation Pattern: Omnidirectional
- Impedance: 50 Ohms
- Power Rating: 50 Watts
- Frequency: 1575.42 MHz
- VSWR: 2.0:1
- Polarization: RHCP
- Radiation Pattern: Hemispherical
- Impedance: 50 Ohms Output (Nominal)
- Gain @ 1575.42 MHz: 26.5dB
- DC Voltage: 4 to 24 vdc
- DC Current: 25mA Min. / 50mA Maximum
- Noise Figure: 2.0dB Min / 3.8dB Maximum
- Selectivity: -35dB Minimum @ 1626.50 MHz
- Speed / Altitude: Single Engine Only
- RTCA Environmental / TSO: DO-160D / C144, C37d, C38d
- Environmental Category: [F2X]ACB[S(L)U(F,F1)T(C,C1R)XR
- FXXSXXXXXXXX[XX]C
- Connector: TNC - GPS / BNC - VHF
- Color: White
Documents
Reviews
I had a new Garmin GNC 355 installed in piper Comanche with the CI-2480-200 antenna. It gets satellite signals on the ground but in flight I get LOI warning and loose my gps during the flight. Then sometimes during landing phase it comes online again. Is this something you have come across? I have been trouble shooting with avionics shop that originally installed with no luck. Very frustrating. I’m wondering if it could just be a bad antenna.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, the CI-2480-200 is not a WAAS antenna so will not work with the GNS 430W or 530W. The CI-2580-200 11-11545 is the correct antenna for this application.
No, the CI-2480-200 is not a WAAS antenna so will not work with the GNS 430W or 530W. The CI-2580-200 11-11545 is the correct antenna for this application.
No, Commant recommends sealant part number 09-02623.
Antennas typically require about 2-3 feet of distance.
