Airgizmos Panel Dock Angle Adapter
MFR Model# PD14
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

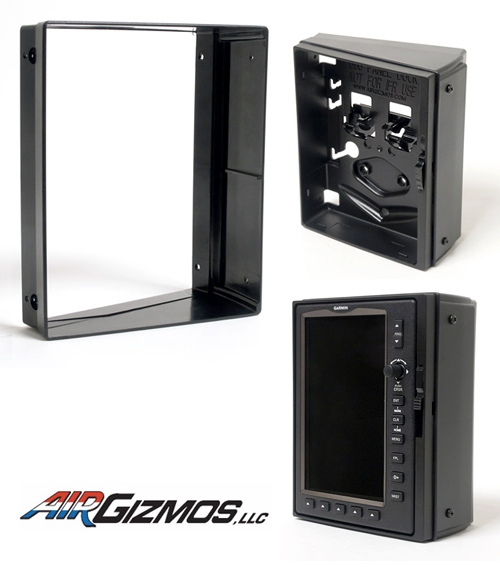

Many pilots will need to install their GPS on the passenger side of the panel. To make the GPS more readable we offer the Angle Adapter. It works in conjunction with the Panel Dock™ and provides an additional 15 degrees of angle to the GPS, making it much easier to see and use. The Angle Adapter fits in the same physical opening as the Panel Dock. The Panel Dock then slides into the Angle Adapter to complete the installation. Application Works with panel docks for 695/696/796, AV8OR Ace, iFly 700, iPad Mini |
Reviews
Verified Purchase
AirGizmos Garmin 796 795 696 695 Horizontal Angle Adapter
I have had several of these. Have had to modify areas to fit for left side of panel - needs to be rotated 180 deg for this. They are very well made with high quality, high strength plastic but I have had 2 with an overall twist of about 10 mm
Verified Purchase
AirGizmos Garmin 796 795 696 695 Horizontal Angle Adapter
fast service, friendly staff
Installed on the co-pilot side instrument panel on a Piper Archer so that it was tilted to the pilot. He was happy with the installation & 796 in view.
The product is good but be prepared to spend some time installing. If you mount the angle bracket first you can access the screw heads to attach to the Avionic tray rails but then you can’t access the side of the angle bracket to attach the GPS/iPad bracket that your unit attaches to. It has to be screwed from the outside and there is no room. If you attach it to the angle bracket first which makes sense then you can’t access the screws to attach it to the Avionis tray rails in the panel. Instructions are vague,.
Verified Purchase
AirGizmos Garmin 796 795 696 695 Horizontal Angle Adapter
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, part number 11-07310 is for a Garmin dock and will not fit the iFly 720. At this time Airgizmos does not carry an angle adapter for this.
The Airgizmos Garmin GPSMAP Angle Adapter was designed for Garmin GPSMAP GPS's and will not work with an Ipad mini.
Yes, this angle adapter will work perfectly with the iPad Mini panel dock.
Yes, the Airgizmos angle adapter can be installed on either side of the panel.
Per Air Gizmos, this angle adapter, part # 11-07310, will also work for the 795.
Per Air Gizmos this angle adapter will work for the 795 and can be installed on either side of the panel. However, you are correct in that the angle will be up or down if it is mounted in the horizontal orientation.
Panel Dock Dimensions - Width: 6.45, Height: 8.11 and Depth: 2.27
Yes, you can mount this in either portrait or landscape mode. With the iPad Mini you would need to order both part # 11-11460 and part # 11-07310.
Yes. The angle adapter will work with the 760 Airgizmo.
Yes, you would order Part# 11-03509 and Part# 11-07310 for the angled dock for 495.
