DM C63-2 Antenna

$522.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-02765
MFR Model# DM C63-2

Overview

118-137MHz Bent Rod For Bottom Installation, Frequency Range 118-137 MHz

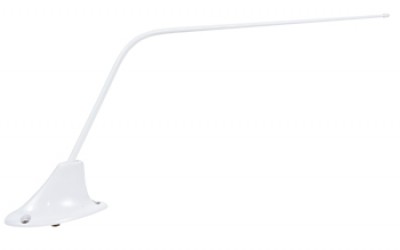

The DM C63-Series antennas are VHF communication antennas designed for high mechanical strength with machine tapered aluminum alloy radiating elements. These vertically polarized antennas cover the frequency range of 118-137 MHz for both transmitting and receiving applications. The DM C63-2 is a low profile "bentback" radiating element designed for mounting on the bottom of the fuselage.

Specifications

  • Frequenc y Range 118 - 137 MHz
  • VSWR 3.0:1
  • Polarization Vertical
  • Radiation Pattern Omnidirectional
  • Gain Equivalent to a quarter wave stub
  • Impedance 50 Ohms
  • Power 50 W
  • TSO C37d and C38d
  • Weight 8 oz
  • Height 8.0 in. Max
  • Finish White
  • Connectors BNC Female
  • Environmental: Per D0160C F2-ABCXXXXXXXXXXXXXXXX
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Good product , readily available, comes complete

William A Verified Purchase

Dorne Dm C63-2 COMMAntenna

May 11, 2023

This product worked fine. It was a replacement for an older part with same part number. Maybe something cheaper would work OK. The joy of owning an old, certified aircraft……sigh….

Eric L Verified Purchase

Dorne Dm C63-2 COMMAntenna

July 27, 2022

Order the Antenna from the UK. Simple and easy to order. Order was dispatched within a few hours and arrived into the UK 36 hours later. Excellent service would recommend.

Mr K Verified Purchase

Dorne Dm C63-2 COMMAntenna

June 22, 2022
