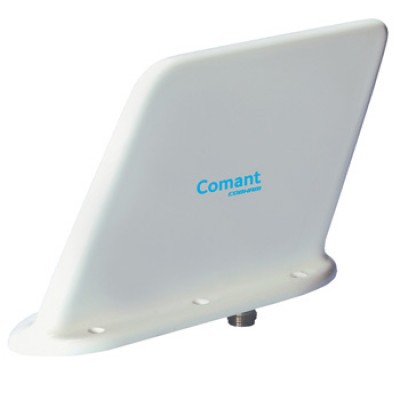

Comant UHF Antenna CI-285

$1427.80/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-06843
MFR Model# CI-285

Overview

Frequency • 400-960 MHz

UHF blade antenna design for high performance aircraft over the full range of 400-960 MHz. Low profile, low drag, light weight antenna is packaged in a molded body and metal mouting base to ensure stable performance in tough environmental conditions. Features vertically polarized/omni-directional pattern, extremely wide band/high efficiency electrical performance. DC grounding for lightning protection, 6 hole mounting.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

MODEL CI 285UHF ANTENNA
Electrical
Frequency
400-960 MHz
VSWR
2.0:1 Maximum
Polarization
Vertical
Radiation Pattern

Equivalent of 1/4 Stub

Impedance
50 Ohms
Power RF
100 Watts
Mechanical
Weight
0.75lb. Maximum
Height
5.20 in. Maximum
Material
Lexan
Finish
Polyurethane Enamel
Connector
N (Female)
Environmental
Temperature
-55ºC to +85ºC
Altitude
55,000 ft.
Air Speed
600 Knots TAS at 25,000 ft.
