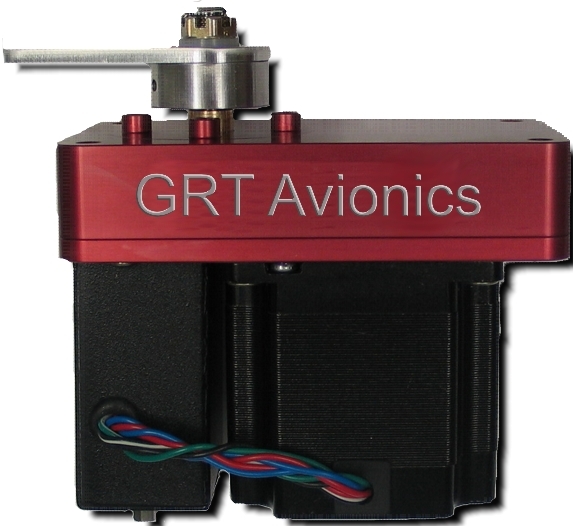

Grt Avionics Autopilot Servos Pitch Servo Version
MFR Model# AP-SERVO-PITCH-B
Overview
| Add full-featured autopilot capability to any GRT EFIS. |
Features
- Servos support all autopilot features provided by the EFIS, including:
Heading select
ILS approach coupling
GPS approach coupling
Climb/Descent to selected altitude
Climb/Descent on IAS or vertical speed
Synthetic approach coupling
Automatic approach capture
VOR coupling - Fail-Safe Servo Design:
Clutchless - Minimizes possibility of inadvertent servo jam
Shearable Output Arm - disconnects servo mechanically in the rare case of an internal servo jam
Limited Authority - Pilot may override the servo by simply moving the control stick - Safe Design Features:
Servo arm retained by castle nut.
Case retained with safety-wired fasteners such that the geartrain can not separate to potentially jam flight controls.
Servo torque sensing provides Trim Up/Down indication to prevent unexpected loss of pitch control
Unexpected disconnect or mode change generates EFIS alarm
Documents
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The GRT Avionics Autopilot Servos are supported for GRT Efis's. Any combination or use of these servos with another company's product is not tested or recommended.
No that will need to be ordered separately. Please see part number 11-11767.
