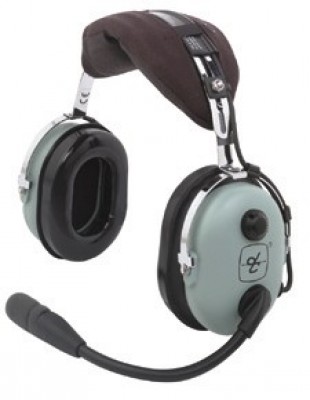

David Clark H10-13.4 Headset Dual GA Plugs
MFR Model# 40411G-01
Overview
|
The H10-13.4 headset provides David Clark quality without the hot spots, clamping, or weight discomfort. It features a certified noise reduction rating of 23 dB and weighs only 16.5 oz. It features M-7A noise cancelling electret mic, and low profile volume controls with detent settings.
The Super-Soft, Double-Foam Headpad will improve the comfort and “wearability” of all H10-series headsets. It is wider and more tapered with 60% more surface area in contact with the head to dissipate headset weight. Its unique center “hinge” actually lets the headpad “breathe” for greater comfort. It also eliminates irritation while wearing button-top baseball caps. The new Comfort-Gel Ear Seals have a patented undercut design and are 26% lighter and allow 30% more interior room for your ears, making for a quieter, more comfortable flight. Available in Standard Mono (five foot straight cord and dual plugs for fixed wing aircraft) |
Specifications
- Earphone Type: Dynamic
- Earphone Impedance: 150 ohms(300 each; wired in parallel)
- Earphone Sensitivity: 90 dB SPL on flat plate coupler, re 1mW input @ 1KHz
- Earphone Frequency Response: 200-5,500 Hz
- Earphone Plug: PJ-055 (.25" phone plug)
- Boom Type: Universal Flex
- Headpad/Hardware: Super-Soft, Double-Foam Headpad,Lightweight Hardware
- Noise-Canceling Mic: M-7A Amplified Electret
- Mic Impedance: 50 ohms +/- 20%
- Mic Sensitivity: 400mV RMS ±6dB into 150 ohm load @ 1kHz for 114dB SPL input
- Mic Freq Response: 300Hz--3.5KHz per RTCA DO 214
- Mic Plug: PJ-068 (.206" phone plug)
- Weight/Headset Only: 16.5 oz.
Reviews
Verified Purchase
David Clark H10-13.4 Headset Dual Plugs Mono H10
Perfect as always
Verified Purchase
David Clark H10-13.4 Headset Dual Plugs Mono H10
Verified Purchase
David Clark H10-13.4 Headset Dual Plugs Mono H10
Industry standard, they work perfectly. Spruce sent them to me in two days.
Verified Purchase
David Clark H10-13.4 Headset Dual Plugs Mono H10
The H10-13.4 is a solid headset that is well made. The fit is snug and comfortable. The audio is clear and the transmission clarity is excellent. For the price I highly recommend this headset for PIC or passenger.
Verified Purchase
David Clark H10-13.4 Headset Dual Plugs Mono H10
Comfortable, easy to adjust/ use, and clear audio
Verified Purchase
David Clark H10-13.4 Headset Dual Plugs Mono H10
This place is amazing.i got caught by a train and was arriving late while they were closing.he went out of his way stayed 1/2 hour of his own time to answer all my questions i had about the headset and local flight training. A+++ people and products. thank you.i love the head set.
Verified Purchase
David Clark H10-13.4 Headset Dual Plugs Mono H10
Very nice headset, comfortable on the ears even when wearing glasses.
Verified Purchase
David Clark H10-13.4 Headset Dual Plugs Mono H10
The weather hasn’t provided decent flying conditions in the Western Great Lakes area to check out the new headset.
Verified Purchase
David Clark H10-13.4 Headset Dual Plugs Mono H10
Great headset. Works as good as these classics always do.
Verified Purchase
David Clark H10-13.4 Headset Dual Plugs Mono H10
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, these two items will work together, but you will need to purchase the Icom headset adapter, part # 11-18537, separately to make them work.
Yes, this headset is equipped with Dual GA plugs.
This headset has dual GA plugs which are standard in more fixed wing, general aviation aircraft. If your Robinson R44 is equipped with a single U-174 civilian helicopter plug, you would need part # 11-10630 as an adapter.
Yes, the ear seals, headpad and mic muff are included with the headset. The accessories listed are for reference in case you lose them or need extras.
David Clark warranties their headsets for 5 years. All warranties are handled directly with David Clark.
The headset does not include a carry bag. You would need to purchase one separately, which is our part # 11-00642. We have added it to the Accessories tab for easy ordering.
If your Airbus helicopter is equipped with female dual GA input jacks, this will work out of the box. If the helicopter is equipped with a U-174 civilian helicopter single female jack, you would need to order Part # 11-04018, DAVID CLARK H10-13H HELICOPTER HEADSET. Please confirm your aircraft's plug input to determine which model you need.
The H10-13.4 comes with Gel Earseals.
This does not have built in Bluetooth. To add Bluetooth, you would need to order Part# 11-06553.
Box shipping weight: Approx 2.55 lbs.
