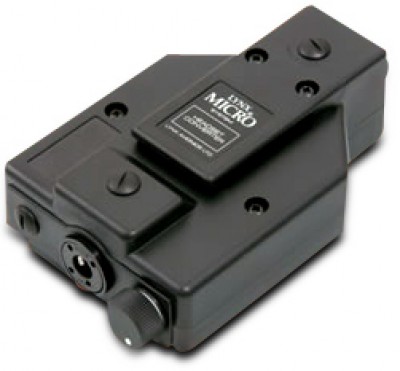

Lynx Avionics Headset Converter (Us Nato Jack)

$380.60/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-09308
MFR Model# M072

Overview

The Headset Converter (US NATO Jack) is for use with helicopter headsets or helmets fitted wit a US NATO jack plug and allows the headset or helmet to connect to a Lync Micro System Radio/Power Interface.

The converter will allow virtually any US NATO military or general aviation headset or helmet to be used in aircraft which have Lynx Micro System equipment installed.

The converter can be configured to work with speaker impedances from 8 to 600 Ohms and dynamic, electret or carbon (Amplified) microphones.

The Converter is backwards compatible with all Lynx Micro System products and maintains all of the Radio/Power Interface functions including selective PTT operation and microphone muting.

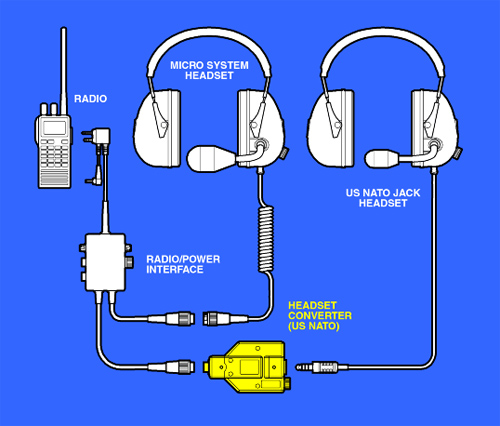

The converter effectively transforms the Micro System Radio/Power Interface into a high quality general aviation intercom system and is very useful in syndicated aircraft where some users wish to retain the use of their helicopter headsets or helmets.

The converter is also useful for pilots of vintage aircraft, as it allows classic helmets to be used with a state-of-the-art intercom system and modern radios including hand-held radios.



Download the Instruction Sheet (PDF)
Download the Configuration Instructions (PDF)
Download the Fixing Kit Instruction Sheet (PDF)

Features

  • Connects US NATO jack headset or helmet
  • Works with speakers from 8 to 600 Ohms
  • Accepts dynamic, electret or carbon microphones
  • Headset volume control
  • Maintains selective PTT operation and muting
  • Water resistant bayonet locking connector
  • Supplied with fixing kit
