Mid-Continent Flex MD23-104 Digital Annuciation Control Unit Configurable LCD

0 Reviews 0 Answered Questions
$2316.60/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 10-07598
MFR Model# MD23-104

Overview

Digital Annunciation Control Unit 2-inch, True Blue Power Gen5 batteries (configurable), LCD

Specifications

  • Model Number: Flex MD23-104
  • Part Number: 6420023-1
  • Data Input: ARINC 429
  • Data Output: ARINC 429
  • Battery: Rechargeable coin cell (memory only)
  • Weight: 0.4 lbs (0.17 kg)
  • Mounting: Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
  • Dimensions: 2.43 x 2.43 x 1.0 inches
  • Mating Connector: P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
  • Certification:
  • FAA TSO certified to C2d, C106, C113b
  • RTCA DO-160G qualified
  • RTCA DO-178C qualified, Design Assurance Level (DAL) A
  • Rights: U.S. Patent 11,048,389

Features

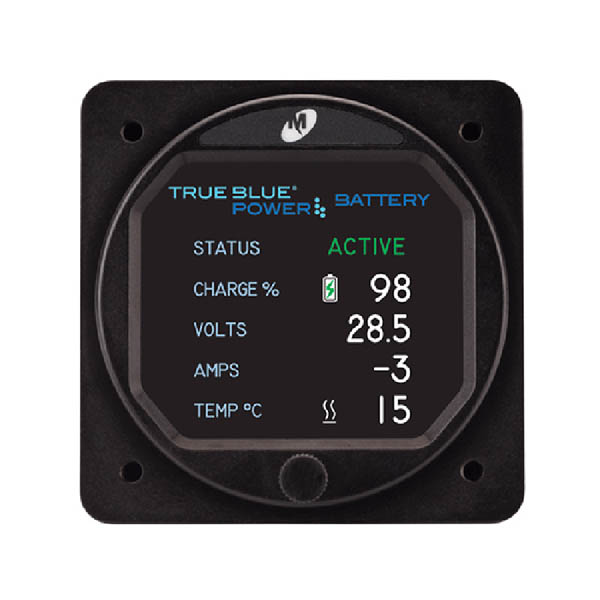

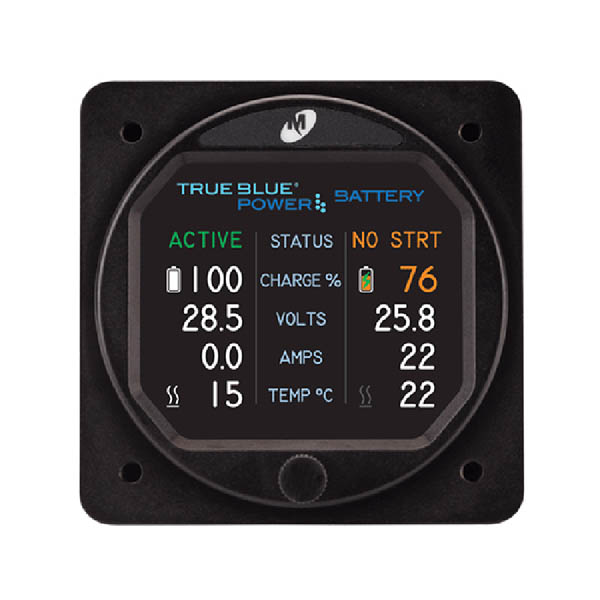

  • Monitors and displays True Blue Power® Gen5 lithium-ion battery parameters
  • Provides status, state of charge, state of health, volts, amps, temperature, remaining life and fault data

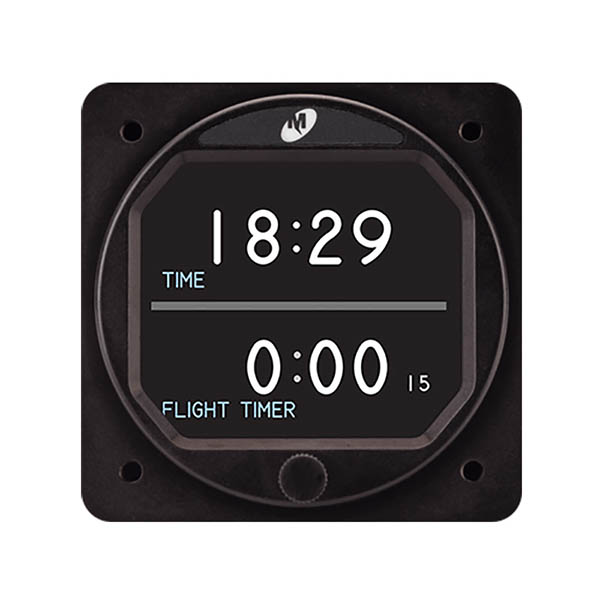

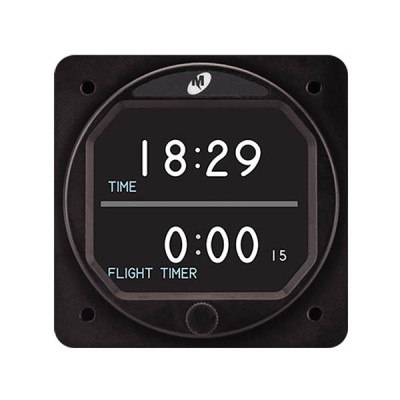

  • Local Time and Flight Timer (available)
  • Night Vision Imaging System (NVIS) compatible (available)
  • Standard 2-inch size
  • Lightweight — 0.4 lbs
  • Simple user interface — Push-and-turn control knob
  • Daylight readable LCD and smooth, high-resolution graphics
  • External lighting control and built-in photocell for automatic dimming
  • Field-upgradeable software via standard USB-A port
  • TSO-certified hardware and software (Design Assurance Level A)
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty
