- Photo may represent series and not specific product
- SHARE

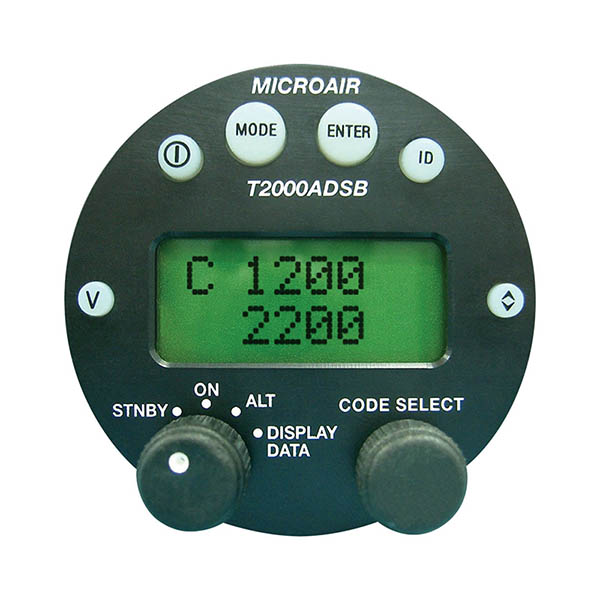

Microair T2000ADSB Transponder
$3624.50/Each
Price Includes GST
Part# 11-19526
MFR Model# T2000ADSB
MFR Model# T2000ADSB
Overview
|
Do you fly a Light Sport or Experimental Aircraft and currently fly without ADSB functionality?
There’s never been a better time to upgrade to ADSB and further enhance aviation safety. The Microair ADSB Transponder products offer pilots improved situational awareness via enhanced electronic visibility of VFR aircraft. Our T2000 ADSB In-Out Transponder combines all the functionality of the original T2000ADSB Out with the added functionality of real-time traffic display and ADSB messages from surrounding aircraft up to 50nm. Ideal for light sport and experimental aircraft operators looking for enhanced visibility and to meet airspace mandates, the new Microair ADSB Transponder integrates Mode AC, ADSB out, GPS position source and altitude encoder in one compact unit. Designed for easy installation, the ADSB Transponder improves situational awareness by making you visible to other aircraft. It is fully compliant to Civil Aviation Safety Authority (CASA) and Civil Aviation Authority (CAA) of New Zealand for ADSB Out. Supported in Australia and by our global dealer network including US and Ireland Are you flying in Australia? To support improved safety and efficiency for Australian airspace users, the Australian Government are offering Grants of up to $5000 to increase the uptake of ADSB equipment in Australian-registered aircraft. (Covering up to 50% of eligible project expenditure). Round 2 of this Automatic Dependent Surveillance (ADSB) Broadcast Rebate program is now open.* To find out more information visit www.business.gov.au *Microair ADSB products are eligible for this Rebate Program. |
Features
- Suitable for light sport and experimental aircraft
- Mode A/C with ADSB Out
- Integrated GPS position source and altitude encoder in one unit
- Compact and lightweight design. Suits standard 57mm (2 ¼ inch) round panel cut out, with 160mm housing depth.
- 200 watt antenna output
- Low power consumption
- Display screen readable in all lighting conditions
- Designed and manufactured in Australia
- Compliant to Civil Aviation Safety Authority (CASA) and Civil Aviation Authority (CAA) of New Zealand requirements for ADSB Out
- Five year extended warranty on upgraded parts
- Supported in Australia and by our global dealer network including US and Ireland
Specifications
- Weight: 0.6 kg
- Dimensions: 16 × 6.1 × 6.1 cm
- Compatibility:
- Compatible with any C88a compliant altitude encoder with either a Gilham or serial output. Or use the inbuilt altimeter.
- TSO EQUIVALENCE
- C74c Class 1a – Transponder
- C166b Class B0 1090Mhz Extended Squitter ADS-B Out (with B1S power output and antenna configuration meeting all 14 CFR 91.227 requirements)
- C196b GPS Position Source (with software upgrade to C145f in late 2023)
- C106c & C88a – Altimeter (to 30,000 feet)
- Mounting: Round panel mount 2 ¼” (57 mm)
- Control Backlit: LCD with rotary selector for setting Mode A code, Flight ID and settings. Push buttons for easy access to common features such as Ident and VFR default code.
- Connections:
- DB25 for power, Gillham code, serial, discrete inputs. Plug and play with the existing T2000SFL Transponder.
- BNC – Transponder antenna
- TNC – GPS antenna
- 1/8” NPT- Static
- Temperature: -20 to +55 Celsius
- Altitude: 55,000 feet, inbuilt altimeter to 30,000 feet
- Power Unit: 10 to 33 volts DC negative chassis ground, 2W average (7W peak)
- RF Output: 1090 Mhz at 200 watts (nominal peak power)
- SWR Tolerance: <5:1 or open feed line
- Accompanying Apps:
- iOS and Android T2000 App
- Allows configuration and settings from an intuitive app installed on the owner’s or pilot’s personal device
- Secondary display of altimetry and position data
- Facilitates periodic software updates as new features and functions are released
Benefits
- Enhanced visibility – to both other aircraft and Air Traffic Control
- Compact design in one unit – enables simple ready to go, plug and play installation
- Seamless integration of GPS position source and altitude encoder – no further configuration or purchases required
