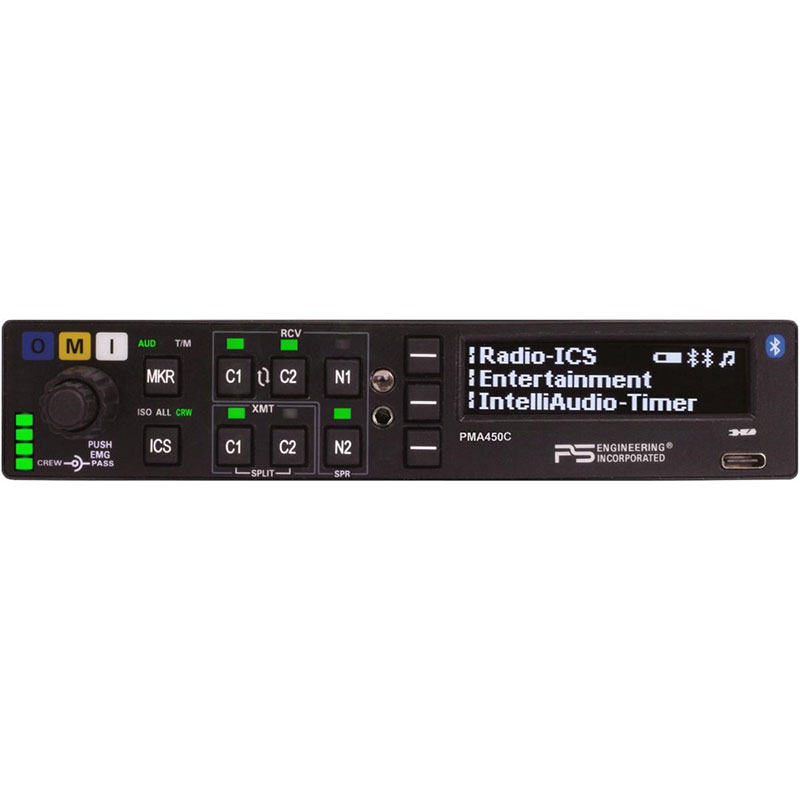

PS Engineering PMA450C Audio Panel 6 Place - TSO For Certified Aircraft

0 Reviews 2 Answered Questions
Select Model
With Marker BeaconWithout Marker Beacon
Price Includes GST
Quantity
Add to Wishlist

Overview

With the proliferation of Bluetooth® enabled devices in the cockpit and the ways pilots are using them, it was time to take the next step in connectivity with the introduction of the PMA450C.

More Bluetooth® capability than any other audio panel available today, When coupled with our innovative approach to audio control, this user friendly PMA450C gives more what the pilot wants from their audio panel, the central nervous system of their avionics suite.

This 3rd generation PMA450C has two completely independent Bluetooth® modules, giving unprecedented connectivity capabilities. The PMA450C has the ability to work like no other panel available. Hear Foreflight® alerts, make a phone call to ATC for your IFR clearance, you might even listen to your favorite tunes once in a while.

IntelliAudio® gives the pilot the capability to pay attention to the radio that is important to their flight at any one instant in time. This is accomplished by positioning the Com audio in the headset to sound as if it is coming from one of 9 unique positions. Just like being at a cocktail party surrounded by other guests, you are able to pay attention to the person who is telling you something important while ignoring the other conversations that aren’t.

The 3 Soft-key user interface is unprecedented for audio control panels. With more and more capability provided by our audio panels, we found it necessary to make the access to these functions easier. If you can read English you’ll be able to get all of the capability from the PMA450C without ever having to open up the User’s Guide.

Features

  • 3 Softkey User Interface integrated with OLED Graphics Display allowing intuitive operation as well as wide angle view in all levels of cockpit lighting
  • IntelliAudio® True Dimensional Sound enhances the ability to listen to two com radios at the same time
  • Multiple Bluetooth® modules - unprecedented flexibility
  • Bluetooth® Music Streaming with front panel volume control
  • Bluetooth® telephone connection
  • USB-C Charging Port provides 15 Watts of power with Auto-Protection preventing electrical shorts from being an issue.
  • 4 Independent Music Inputs, Music #1, Music #2, and Bluetooth® (BT1), Bluetooth® 2 (BT2)
  • Enhanced Digital Aircraft Radio Recorder with display of Com and message number that is being played back
  • Copilot as Passenger function
  • 6 place IntelliVox® automatic VOX hi-fi stereo intercom with advanced intercom functions such as Alternate Intercom Function and Copilot as Passenger
  • 3 User definable switched inputs
  • Monitor Mode allows automatic muting of non-primary radio
  • 3 music mute modes: Mute On, Mute Off, Radio Mute
  • Volume control for Intercom, Speaker, Marker Beacon Audio, 3 Switched Inputs, Telephone, and all Music Inputs
  • Built-in Marker Beacon Receiver
  • Split mode for dual audio panel capability
  • 3 Isolation modes - Pilot Isolate, All, and Crew
  • 4 - 5 un-switched inputs
  • Selectable music distribution for pilot, copilot and passengers
  • RAM (Radio Active Mute) eliminates constant back ground noise from radio static
  • 2-year Pro-Support Warranty

Harness

  • PS Engineering requires all units to be sold with custom harness in order to maintain factory warranty. Units sold without harness will receive no factory warranty. All PS Engineering orders with custom wire harness are build to order and require all questions to be filled out to process correctly. Any custom order not complete will cause delays. All custom harnesses are built to IPC-WHMA-A-620 standards via the manufacturer’s installation manual. Any additional comments or special requests may be noted in the Special Instructions field at checkout for review by the avionics team. For questions regarding custom harnesses for PS Engineering please email avionics@aircraftspruce.com or call us at 800-826-3160.

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this fit in the same slot as an old Narco CP136 TSO?

No it will not.

Q: Can this PS Engineering PMA450C audio panel be installed by A&P Mechanic?

Yes, this could be installed by an A&P.
