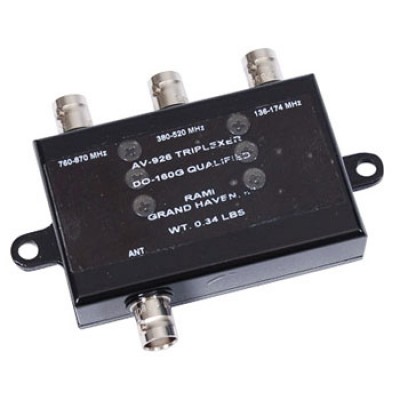

RAMI AV-926 Triplexer

$539.00/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-10847
MFR Model# AV-926

Overview

The AV-926 triplexer can be used with airborne multiband FM transceivers. The device is designed to provide three separate frequency band ports (typically going to a multiband transceiver) from a single port multiband antenna.

Frequency:
Port 1 Antenna
Port 2 Radio 136–174 MHz
Port 3 Radio 380–520 MHz
Port 4 Radio 760–870 MHz

Specifications

  • Application: Airborne Communications
  • Frequency: Port 1 Antenna
  • Port 2 Radio 136–174 MHz
  • Port 3 Radio 380–520 MHz
  • Port 4 Radio 760–870 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.2:1
  • Insertion Loss: < .5 dB
  • Isolation: > 35 dB
  • Connector: “BNC” Female
  • Weight: 0.34 lbs. Maximum
  • RF Power Capacity: 10 Watts VHF, 5 Watts UHF
  • Color: Black
