RAM Double Socket Short Arm with Diamond Plate - B Size Long

$35.19/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-19222
MFR Model# RAM-B-103-C-238U

Overview

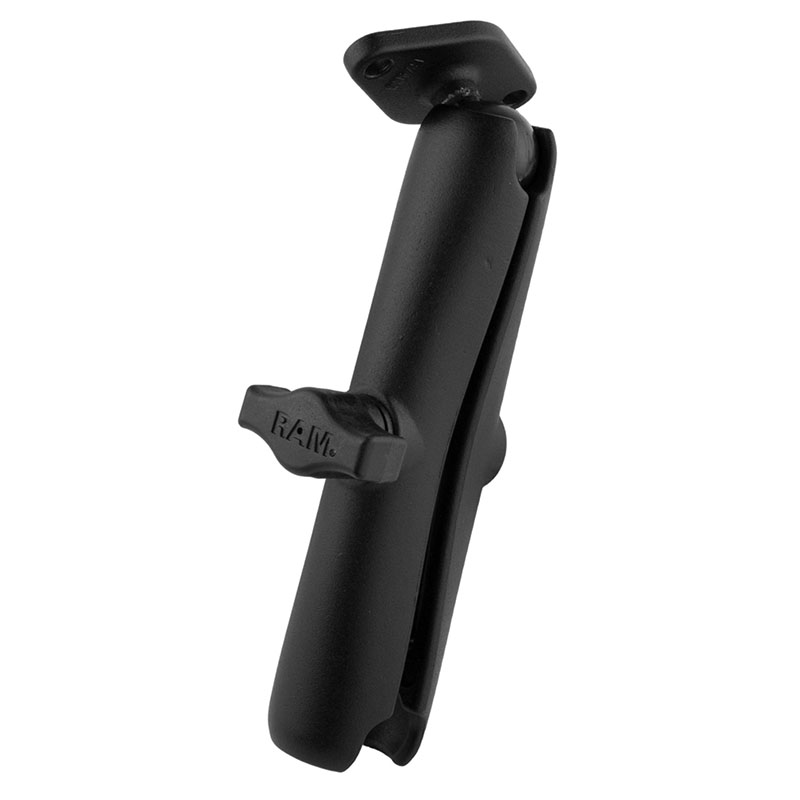

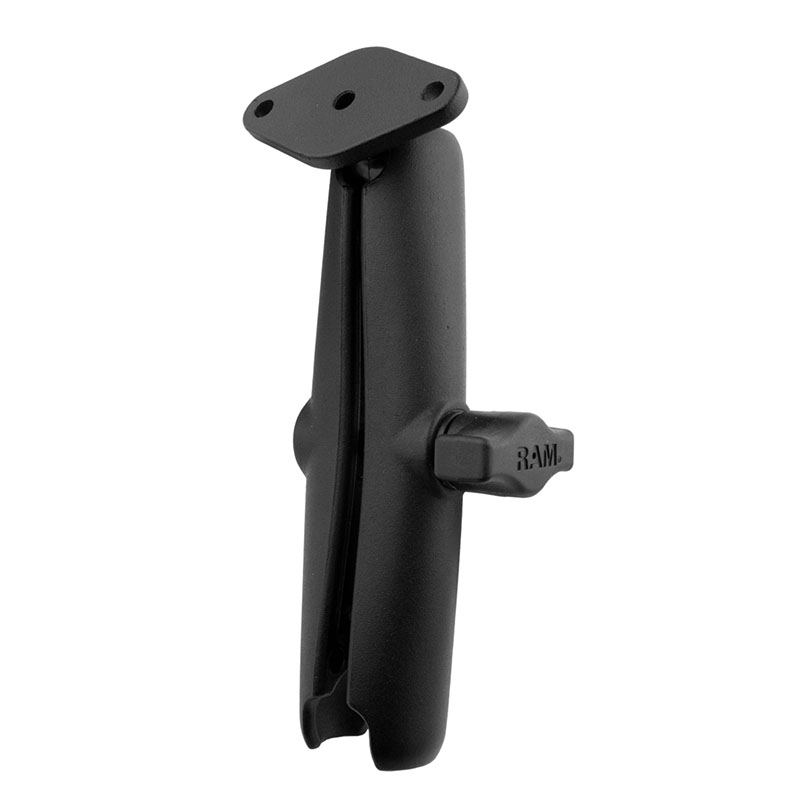

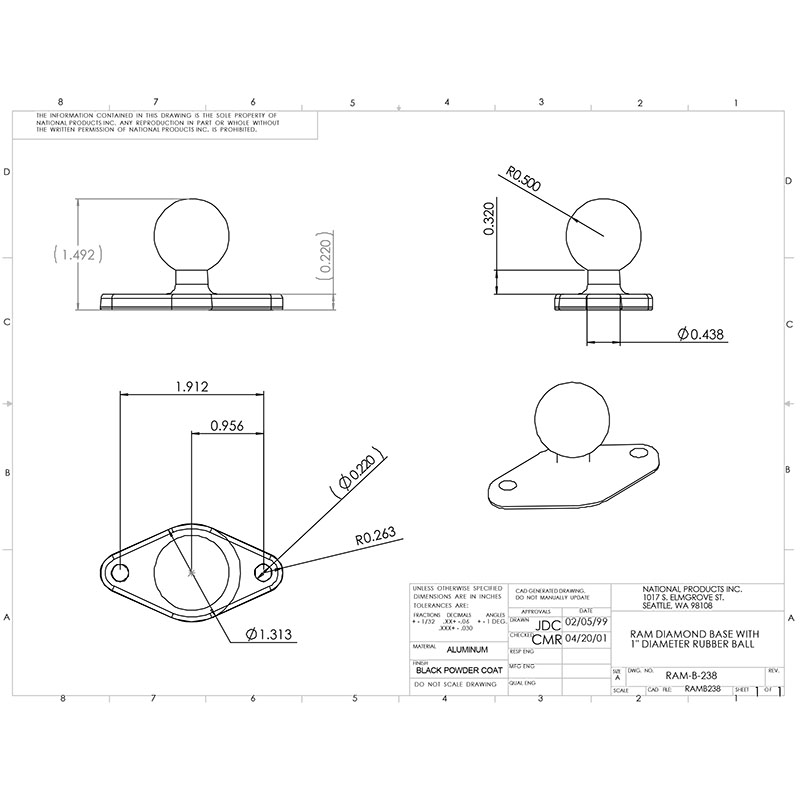

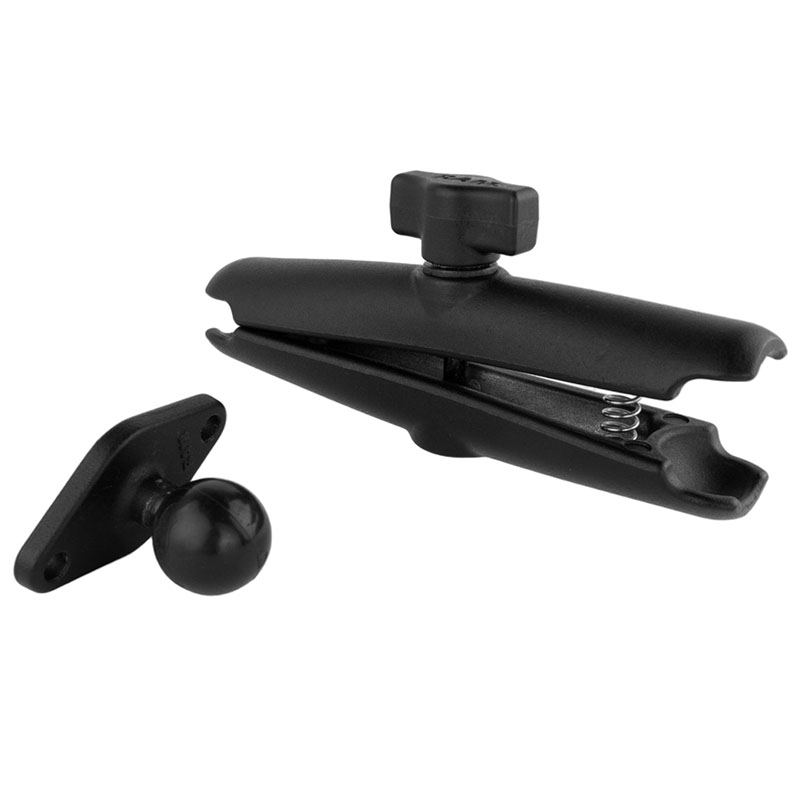

The RAM-B-103-C-238U consists of a diamond base and LONG double socket arm that will accept 1" ball bases. The diamond base measures 2.43" x 1.31" and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond base will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you to maneuver the mount to your optimum viewing position.

Features

  • Diamond plate features industry-standard 2-hole AMPS hole pattern; connects to a variety of RAMŽ device holders
  • Includes B size long length RAMŽ double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specifications

  • SOCKET TO SOCKET LENGTH:
    • 5.31"
  • HOLE PATTERN:
    • 2-Hole AMPS: 1.912"
  • BALL SIZE:
    • B Size (1")
  • WEIGHT CAPACITY
    • Standard Use: 2 lbs
    • Heavy-Duty Use: 1 lb
  • MATERIALS
    • Marine-grade aluminum
  • PACKAGING TYPE
    • Poly Bag
  • WEIGHT
    • 0.65 lb
