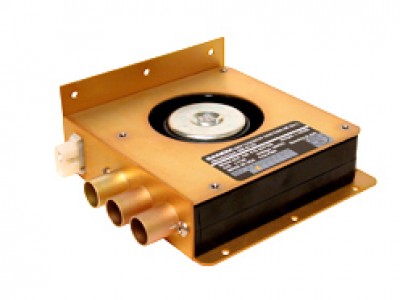

Sandia ACF 314 & ACF 328 (3 Port Fans)

From $385.00 to $399.00
Prices below incude GST
Description Part No. Price Buy
SANDIA ACF 314 3 PORT COOLING FAN 14V PMA
11-06345
$423.50
Quantity
SANDIA ACF 328 3 PORT COOLING FAN 28V PMA
11-11300
$438.90
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The ACF 314 and ACF 328 simultaneously cool up to three avionics units. Operating on 14Vdc and 28 Vdc respectively the ACF 314 and ACF 328 supply up to 20 cubic feet of cooling air per minute, helping maintain your avionics at a proper operating temperature. SANDIA Aerospace cooling fans use high quality, brushless blower motors and or Run Quiettm technology. These units are FAA PMA's and have passed stringent environmental testing to ensure years of reliable service.

Specifications

  • Operating Voltage: 14Vdc
  • Current Draw: 960mA (1.7A at startup}
  • Size: 5.18" x 5.18" x 2.1"
  • Weight: 1.18 lbs
  • Tube Outlet: 5/8 inch OD

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

This fan will NOT cool a Garmin 530. Only used one port and still did nothing to cool at the rate required under mild conditions.

Philip G
July 8, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I need to confirm the diameter of the hose where it connects to the fan. I am using the unit to cool a dual GNS430 Garmin installation. I assume the hose is 5/8 but want to confirm?

Yes, 5/8" OD.

Q: What are the tube outlet sizes for the Sandia ACF 314 and 328 fans?

The tube outlet size is 5/8". We have added it to the Specs.
