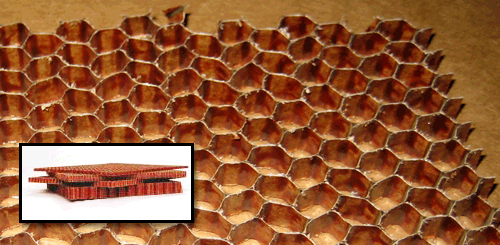

Honeycomb 1/8 Inch Thick 1/8 Inch Cells

Select Size:
4 ft x 8 ft4 ft x 4 ft
Price Includes GST
Quantity
Add to Wishlist

Overview

AHN 7800 is an Commercial Grade Nomex honeycomb particularly suited for use where resistance to corrosive attack and moisture are important. This material exhibits good strength characteristics and is fire resistant. It is available in a variety of cell sizes and densities to suit most purposes. Typical applications include lightweight non-structural bulkheads for ships, joiner panels, shelters, antennas, and auto body panels. This material is not intended for aircraft or aerospace applications. This material also exhibits good thermal insulation properties and also has good dielectric properties. This honeycomb is easily machined, formed, and shaped and well suited to adhesive bonding.

SHEET SIZE TOLERANCES

Length (W) & Width (L):
-0 +4 inches
Thickness (T):
+/- .006 up to 2.00 inches
.010 to 4.00 inches
.060 above 4.00 inches


Product Designation

Cell - Density

Compressive
Plate Shear
Bare
Stabilized
L Direction
W Direction
Strength PSI
Strength PSI
Strength PSI
Strength PSI
Hexagonal Cell
typ
type
typ
typ
AHN 7800 - 1/8 - 3.0
275
300
150
90
All tests are per MIL--STD--401B, at core thickness of .500". Typ indicates averages of typical production test results, actual results may be lower.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Hi, I would like to know if it is possible to glue this honeycomb to an aluminum sheet? If possible, what resin or other product is required? Thanks.

Yes, it is possible. The PTM&W metal bonding adhesive would work. Our part number is 01-00415 for a quart kit.

Q: What is the density for the 1/8" honeycomb?

This 1/8" honeycomb is 3 lb density.
