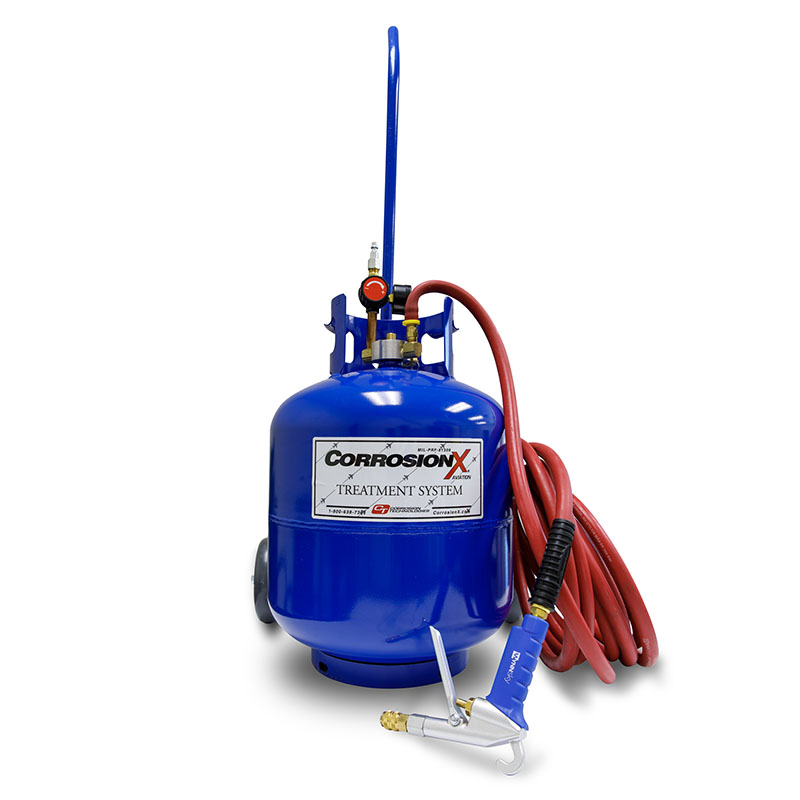

Corrosion X Handi-Spray™ 5 Gallon Application Systems

Select Model:
Basic UnitComplete Unit
Price Includes GST
Quantity
Add to Wishlist

Overview

The Handi-Spray application systems were designed to atomize CorrosionX, CorrosionX® Aviation, CorrosionX® Extended Duty, NavGuard and other liquids into an incredibly fine, smoke-like fog. This fine atomization converts low and medium viscosity liquid products into micro-droplets, which stay suspended in the air for an extended period of time. This degree of atomization is key for achieving the most cost-effective and thorough application of corrosion preventative compounds into airframes and other irregularly shaped enclosures where direct application is not practical (e.g. around blind corners, unreachable areas, etc.).

Note: Unit ships empty

Features

  • When properly fogged into an enclosed area like an airplane wing, the suspended CorrosionX Aviation vapor will entirely fill the void of an enclosed area and deposit a light coating of the product on every surface. This allows CorrosionX Aviation to go around blind corners, to treat the back sides of spars and to penetrate into lap seams and other areas that cannot be sprayed directly
  • In contrast, although overspraying and saturating an airframe using a common pump-up will usually not cause any damage, it will cause CorrosionX to drip and weep for longer than it needs to (not to mention wasting money by using excess product). The Handi-Spray systems will spray CorrosionX Heavy Duty nicely, but they are not able to atomize Heavy Duty as it is too thick to "fog".
  • Used extensively by the U.S. military as well as NATO forces, all CorrosionX products and Handi-Spray application equipment have been assigned National Stock Numbers (NSN) by the General Services Agency (GSA) and are available for procurement through the Defense Logistics Agency (DLA).

Specifications

  • Required Air Pressure: 80 PSI @ 5 - 6 CFM
  • Capacity: 5 gallons
  • Weight: 28lbs
  • Hose: 25ft
  • Color: Blue

Wand Info

Cricket Wand
Size: 1" Spray:Fan Blast



Hook Wand
Size: 5" x 1/8" Spray:Cone



Superflex Wand
Size: 36" with flexible tubing Spray:Thin Fan





3 Foot Wand
Size: 36" x 1/4" Spray:360°



6 Foot Wand
Size: 72" x 3/16" Spray:45° Fan



8 Foot Wand
Size: 96" x 1/4" Spray:360°

In The Box

Basic Unit Includes:
  • 1" cricket wand
  • 3ft x 1/4" 360° wand
  • 3ft superflex wand
Complete Unit Includes:
  • 1" cricket wand
  • 3ft x 1/4" 360° wand
  • 3ft superflex wand
  • 8ft x 1/4" 360° wand
  • 6ft x 3/16" 45° fan wand
  • 5" x 1/8" hook wand

Reviews

The wands are poorly constructed one of the 3 we got was only partially made and none look anything like the pictures show. The second issue is they are not made to fit precisely enough the weight of the large wand causes a gap to form in the coupling so it gushes out the fluid instead of sending it to the sprayer. All of that being said it is still much better than trying to use the bottles or spray cans and I have tried and failed to make those pesticide cans you get at the hardware store to work and they dont.

High S
March 1, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this refillable?

Yes, this is the hardware to spray the product and it is refillable.
