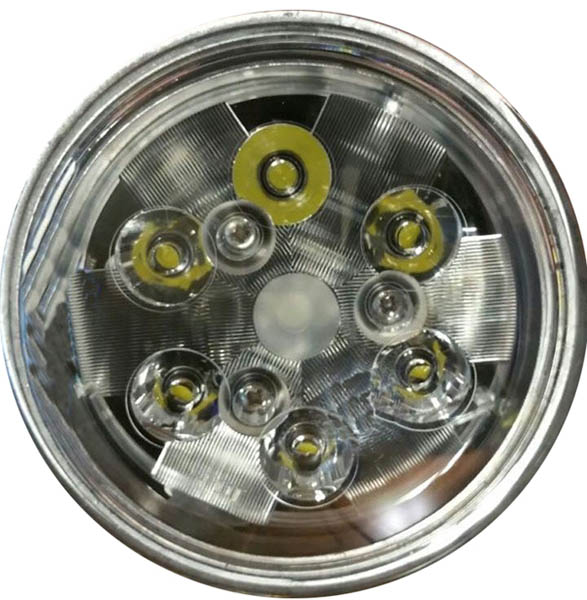

NavStrobe Aircraft PAR 36 LED Landing Light

$190.03/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-14745
MFR Model# L-BEAM 220W-7604

Overview

Aircraft PAR36 Landing Light, 220w, 109, 400 LM LEDs.
These are non-TSO'd
  • Total Emitters: 6
  • Power: 220W Equivalent
  • Color BIN: White
  • Draws <1000ma @ 14.2VDC
  • Luminous Flux: 109,400LM (8.8k Candlepower)
  • Color Temperature: 6500K
  • Beam width 15º (Spot)
  • Drop-in replacement for traditional PAR36 lamps
  • Projected life greater than 9,000 hours
  • Works on both 14V and 28V systems
  • Draws less power
  • Built in thermal protection
  • 1 mode: constant on
  • Base Type: ST2 (GE7604)
  • Application: Aircraft Landing light replacement.
  • Contains 1 light bulb per pack

Specifications

  • Dimensions: 4.5 in x 1.7 in (112 mm x 43.5 mm)
  • Weight: 9.5 oz (270 g)

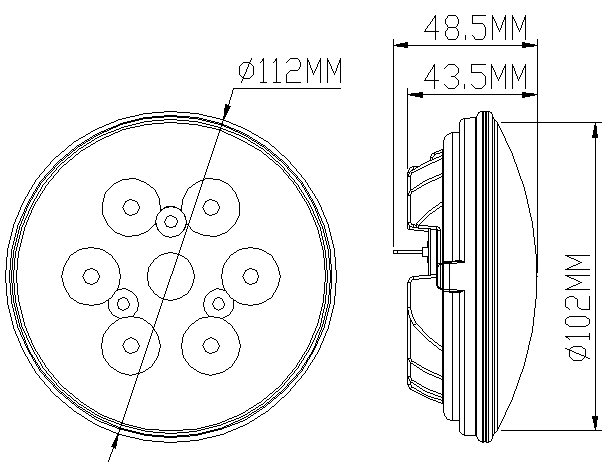

Drawing

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

After receiving this light, I did a comparison with the original 100 watt incandescent bulb. I picked a building just over 300 feet away to light up. The incandescent bulb lit a portion of the wall in a rectangle of maybe 4x8 feet with not much spill over light. Unless you are pointed at a target, it is not much of a recognition light. This NAVSTROBE light was a brighter whiter light that lit the entire side of the building and more. It is both better for lighting a runway and better for recognition in a much wider cone.

Kurt
July 14, 2018

Works good, only draws about 1.5 amps. Doesnt fit really well, had to do some modifications.

Doyle B
January 18, 2019

Very disappointed with light output from the Navstrobe PAR 36 Led Landing Light. The original sealed beams are much better and brighter.

Robert V
June 28, 2018

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this lite replace a 4509 100 watt landing lite?

Yes, this light is a PAR 36 light, since the 4509 is a PAR 36 as well, these two work in the same applications. Please keep in mind these are not FAA TSO approved.

Q: So not being FAA TSOd means that these lights cannot be put on a PA-28-140B which is a type certified a/c...right?

Correct, these are not FAA legal PAR 36 replacement lights in certificated aircraft.

Q: So can you use these in a type rated GA plane like a PA28-140?

No, these do not have any FAA Approval for use in certified aircraft.

Q: If this light doesnt fit in my housing, can I return it for a full refund?

Yes, we accept returns within 30 days of receipt. It must be in new, resellable condition.

Q: How does this Navstrobe PAR 36 LED mount? I see no place to attach a bracket.

These are a drop in replacement for a par 36 lamp, they would use the same retaining ring that holds the Par 36 lamp in your aircraft.
