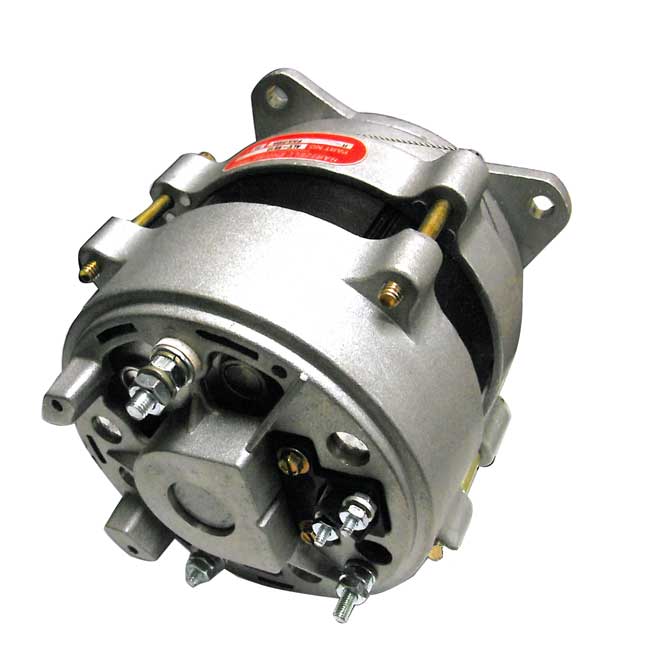

Hartzell Engine Tech ALV-9610 Aircraft Alternator
MFR Model# ALV-9610
Overview
|
Lighter, Tougher, and Proven!
Introducing the brand new ALV-9610. The ALV-9610 alternator is a direct replacement for gear driven heavyweight alternators on the Continental 520 & 550 engines. Weighing under 13 lbs., the ALV-9610 is up to 9 lbs. lighter than current heavyweight options. The ALV-9610 is a field proven design that has been in use for over 5 years with thousands of alternators operating on the world's top selling aircraft. FAA/PMA Approved. Service Bulletin |
Application
| MODEL | VOLTS/AMPS | DRIVE TYPE | OP. SPEED / RPM | LBS. | REPLACES |
| ALV-9610 | 28V-100A | Gear Drive | 2,400-10,000 rpm | 12lb 12oz. | Continental (fr.TCM) 646491, 649304, |
| ALV-9510 | |||||
| ES-10024 | 28V-100A | Gear Drive | 2,400-10,000 rpm | 12lb 12oz. | Continental 656802 |
| While the alternators listed are direct replacements for existing aircraft installations, | |||||
| there is no guarantee Hartzell recommendations are absolute due to unforeseen variations, | |||||
| modifications, and/or manufacturer changes to an aircraft/rotorcraft or engine over the years. | |||||
Specifications
- 28 Volt / 100 Amp Prestolite Style
- Max Continuous Oper. Speed: 10000 rpm
- Type Drive: Gear
- Min. Speed for Regulation: 2400 rpm
- Max. Operating Altitude: 35000 rpm
- Weight: 12 lbs.
- Rotation: Bi-Directional
- Replaces TCM part numbers: 642056, 646491, 646842, 649304, as well as ALV-9510.
Features
- Up to 9.6 lbs. weight savings (per engine)
- OEM Direct Replacement
- More power at engine cruise
- Built in noise cancellation
- Rugged design for extreme conditions
- More economical than overhauled units
- 3 Year / 1000 hour Warranty (Whichever occurs first)
Documents
- Service Bulletin (PDF)
- Drawing (PDF)
Reviews
I bought two for a C310. They work so far, and they shared the load without us needing to adjust the regulators to make them parallel. The weight savings is nice. Contrary to the Q&A answer, mine included the gaskets.
Installed 2 on a C414A. Good easy installation. Having a pair makes it easy to parallel the voltage regulators.
Verified Purchase
Alv-9610 Hartzell New Alternator
Worked perfectly
Verified Purchase
Alv-9610 Hartzell New Alternator
5 grand for a continental alternator, less than $1k for this one with a 3 year warranty. No brainer.
Durable clean alternator
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, even though this is new we still are required to include a core charge. The amount of the core will be automatically added as a line item when you add this unit to your shopping cart.
This alternator includes a domestic (USA) 8130 form with each shipment. Export 8130-3 must be requested at time of order. Please check with your local aviation authority as in many cases the domestic (USA) 8130 will be sufficient.
The standard core charge is $425 as of 06/14/13. Some old Hartzell models are accepted as cores and others are not. We need to know the exact model number to get the core charge that will apply. Please call sales at 877-477-7823 and request they get the current core charge for your specific alternator.
Per our tech: warranty is 2 years ---- engine TBO.
No, this does not come with a washer. Please purchase part # 653981 separately.
If experimental P/N# 07-01305 is recommended.
No it does not, the correct gasket is 08-11257.
No drive assemblies are not included, you would need to reuse yours.
