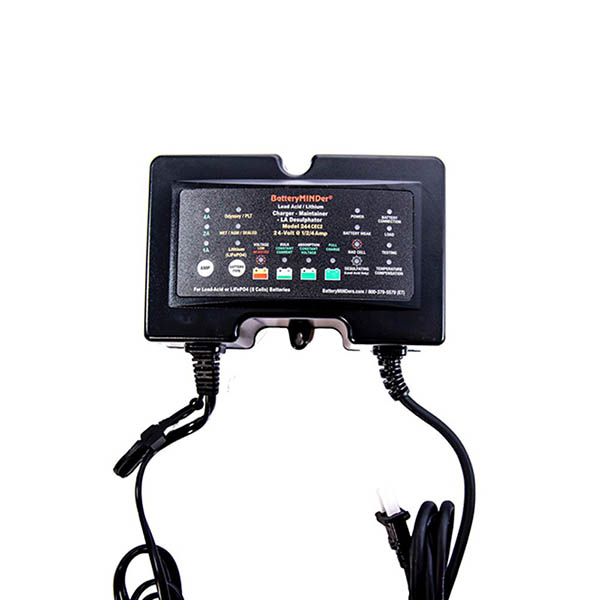

BatteryMINDer 24V 1,2,4 CEC2 Charger, Desulfator Lithium Charger Maintainer 224CEC2

$226.55/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-19243
MFR Model# 244CEC2

Overview

24-Volt 224CEC2 Standard Lead-Acid Maintenance Charger-Desulfator Lithium Charger Maintainer

User-Selectable Settings for All Sealed / Wet (filler cap) /Maintenance-Free / AGM / Deep Cycle / RV / Marine / PLT and Odyssey brand Lead-Acid** based Batteries. Diagnoses battery’s condition – can predict failing batteries before they die. For ALL 24-Volt Sealed and Wet “Filler Caps” Batteries Including AGM, PLT and Odyssey.

Features

  • Guaranteed to never overcharge/undercharge. (33°F to 130°F)
  • Push-Button Selection for ALL battery types and charge rates.
  • 100% Full - Time U.S. Patented Pulse-type Desulfation keeps lead acid battery free of sulfate or dissolves sulfate completely in older batteries.
  • Detects and rejects batteries with bad cells.
  • Maximize battery life and capacity, recovers weak batteries.
  • Diagnoses battery’s condition / state-of-charge.
  • Recovers weak or deeply discharged batteries: including but not limited to flooded filler cap, maintenance-free, valve regulated lead-acid (VRLA), sealed lead-acid (SLA), starter, deep cycle and hybrid.
  • Maintain up to 8 batteries at a time. (requires BatteryMINDer® Y-Connector Accessory 210-AY)
  • Auto-Restart after power failure.
  • Intrusion protected from water and dust per IEC STANDARD IP65.
  • Bad cell detection with auto-shutdown.
  • Includes Short circuit, spark, reverse polarity protection, thermal runaway protection, automatic D/C disconnect on A/C failure and quick-connect/disconnect fused alligator clip assembly
  • Very high efficiency. California CEC Approved.
  • Automatically detects input AC power.
  • ECO-mode with hi-efficiency / low power consumption.
  • Ambient temperature compensation. Built-in temperature sensor automatically adjusts charge rate to ensure full-charge. (as low as 0°F or as high as 130°F)
  • 18 LED indicators show state-of-charge and important status mode / battery condition. Rugged, vibration-resistant construction.
  • Never connect two or more batteries together before fully charging each and checking their condition. Failure to fully charge each battery and check their condition can result in a serious safety hazard.
  • Not for nickel–cadmium (NiCad), nickel–metal hydride (NiMH) or aircraft batteries.

Specifications

  • Voltage: 24V
  • Charging Current: 1/2/4 AMP
  • Power Source: 90-140 VAC, 47-63 Hz
  • Temperature Compensation: Yes: -4°F (-20°C) to 122°F (50°C)
  • Overcharge Protection: Yes
  • Polarity Reversal Protection: Yes
  • International Standard IP65*:Dust tight: No ingress of dust; complete protection against contact (dust tight). Protection from water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.
  • Multiple Batteries (#):8
  • Product Dimensions:4.9” L x 7.3” W x 2.1” H
  • Works With:All sizes/types/brands of 12 Volt flooded (filler cap) and sealed maintenance free batteries

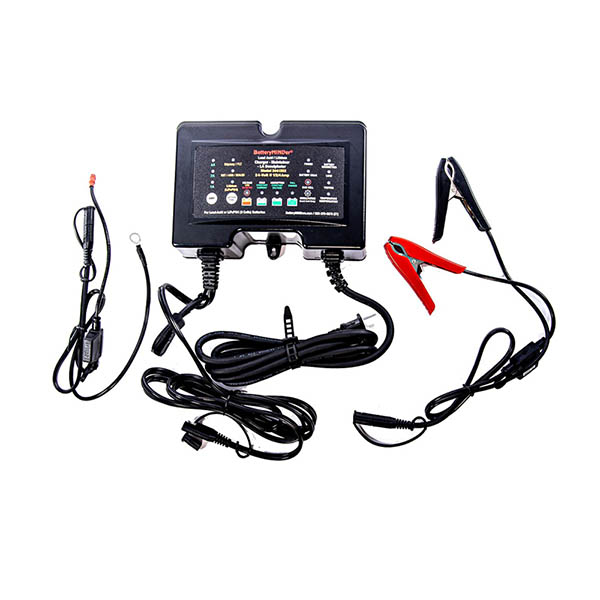

In The Box

  • Model 244CEC2 Charger-Maintainer-Desulfator
  • 6' AC cord, 6' DC cord with quick connector (SAE)
  • Auto-Temp Compensation Sensor (installed)
  • Battery Clip Cord Set with Quick Connector and 15A replaceable fuse
  • 2' Ring Terminal Cord Set with Quick Connect
  • Ring Terminal Assembly and 15A replaceable fuse
