Concorde RG-47 Aircraft Battery

$3801.60/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-11618
MFR Model# RG-47

Overview

Concorde recombinant gas (RG® Series) valve regulated lead acid (VRLA) batteries for engine starting. Constructed with Concorde’s proprietary PolyGuard™ Microporous Polyethylene Separator, shielding the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation protection feature.PMA/TSO
  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Maintenance free AGM battery
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness

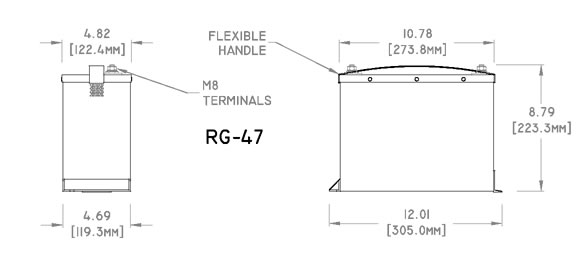

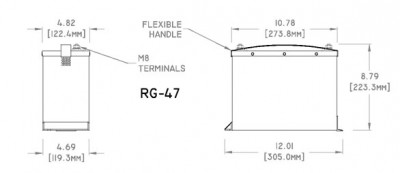

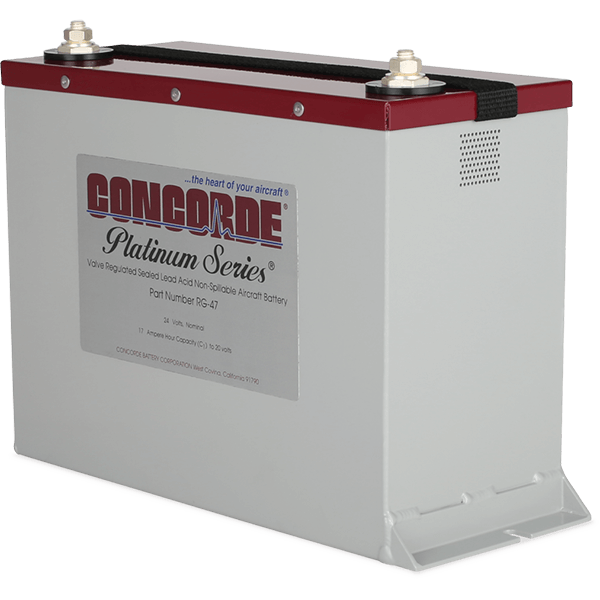

RG-47 is is fire resistant powder coated aluminum container with perforated vent areas machined into each side of the container. Two metal foot brackets are welded to the bottom of each side of the container. Aluminum powder coated cover is riveted to the container and the terminals at the top are male threaded posts.

Specifications

  • Primary Aircraft Purpose:Turbine Starting Aircraft Battery
  • Voltage:24v
  • Rated Capacity C1 = 1 hr. rate in ampere hours: 17.00
  • Max Weight: 43.00 lb / 19.5 kg
