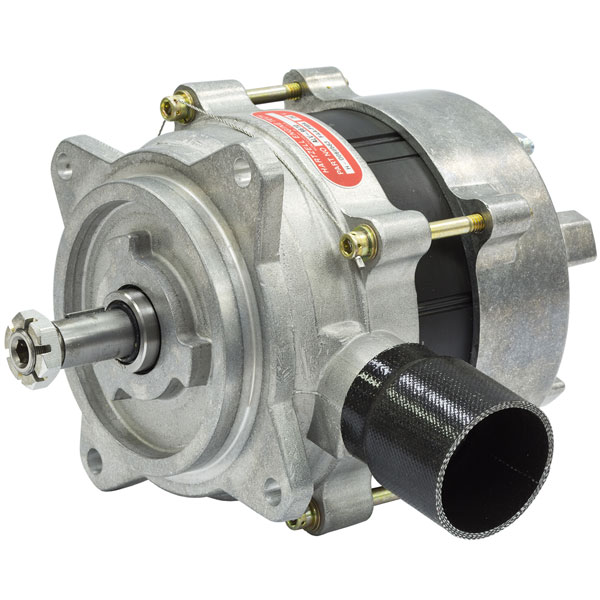

- Photo may represent series and not specific product
- SHARE
AL Series Alternators - Factory New
| Hartzell Part No. | Volt/Amp | Drive | Replaces | PN | Price | Buy |
|---|---|---|---|---|---|---|
| ALE-8521LS | 24V/70A | No Pully/Belt | ALU-8421LS, Lyc LW-14326 | 08-07126 | $1763.30 | |
| ALT-8520 | 24V/50A | Belt | ALT-8420, CMI 652486 | 08-07122 | $1864.50 | |
| ALT-8521R | 24V/50A | Belt | ALT-8421 | 08-07123 | $2118.60 | |
| ALT-8521LS | 24V/50A | No Pully/Belt | ALT-8421LS | 08-07124 | $2113.10 | |
| ALT-9522 | 24V/50A | Direct | ALT-9422, CMI 641668 | 08-07125 | $1833.70 | |
| ALU-6526 | 24V / 60A | Belt | Cessna ALU-6526 | 07-19276 | $1648.90 | |
| ALU-6539-4 | 25V 175A | -- | -- | 08-15650 | $2369.40 | |
| ALU-8521 | 24V/70A | Belt | ALU-8421 | 08-07127 | $1941.50 | |
| ALU-8521LS | 24V/70A | No Pully/Belt | ALU-8421LS, Lyc LW-14326 | 08-07128 | $1853.50 | |
| ALU-8532 LS | 28V/75A | No Pully/Belt | Lyc 32C21997 | 08-07129 | $1864.50 | |
| ALX-6526 | 12V / 70A | Belt | Cessna ALX-6526 | 07-19277 | $1762.20 | |
| ALX-8521 | 12V/70A | Belt | -- | 08-07130 | $1837.00 | |
| ALX-8521 LS | 12V/70A | No Pully/Belt | Lyc LW-14318 | 08-07131 | $1824.90 | |
| ALX-8523 | 12V/70A | Direct | CMI 652485 | 08-07132 | $1820.50 | |
| ALX-9524 | 12V/70A | Direct | CMI 641670 | 08-07133 | $1798.50 | |
| ALX-9525B | 14V/70A | Gear Driven | -- | 08-07134 | $1754.50 | |
| ALY-6522 | 12V/60A | Belt | -- | 08-07135 | $1622.50 | |
| ALY-6527 | 12V/60A | Belt | Lyc LW-14315 | 08-07136 | $1826.00 | |
| ALY-8520 | 12V/60A | Belt | -- | 08-07137 | $1713.80 | |
| ALY-8520LS | 12V/60A | No Pully/Belt | Lyc LW-14313 | 08-07138 | $1694.00 |
Overview
|
We carry the full line of alternators, generators, and starters which are re-manufactured by Hartzell Engine Tech for installation in general aviation aircraft. Fully FAA approved. All prices shown are exchange prices. Core charges are billed when unit is shipped. Core credit is issued upon return of acceptable like model core to us. Attention: These charts are for reference only. Check owners manual or current part installed to verify the model required prior to puchase. |
Reviews
Verified Purchase
ALX-8521 Hartzell New Alternator
Works great and as a direct replacement on my PA 32.
Verified Purchase
ALY-6522 Hartzell New Alternator
The price was fair and the delivery was on time. However, seeing that it’s was Plane Power product when I pulled it out of the box has me a little concerned as we have had issues with their new products in the past. Being that this went on my personal airplane and not a customers I decided to install it anyway to see if quality control has improved since 2017. First three hours of operation went just fine. Time will tell.
There was no gasket included. Youd think a new alternator would include one or at least have the courtesy to tell me it needs to be purchased separately. Fortunately I found one on the field but it diminishes the feeling of having a new unit.
I decided to buy two new alternators for my twin during engine change. I thought new has to be better and more reliable than overhauled. One new alternator failed on the first flight. We troubleshot made sure connections and other components were in good order and the alternator failed on the second flight. Not impressed with quality control. Its covered by warranty but not the labor!
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The AL series Alternators are not internally regulated and do require a voltage regulator.
Approx 12.3 lbs.
This does not ship with the drive end oil seal.
New - 36 months/1000 operating hours
Overhauled - 6 months/250 operating hours
