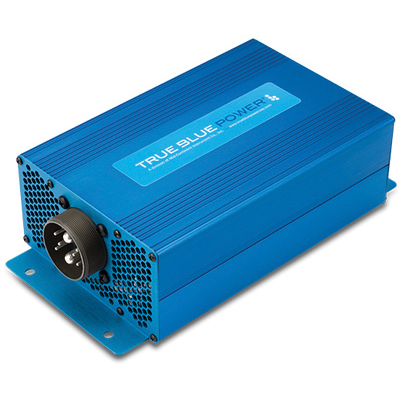

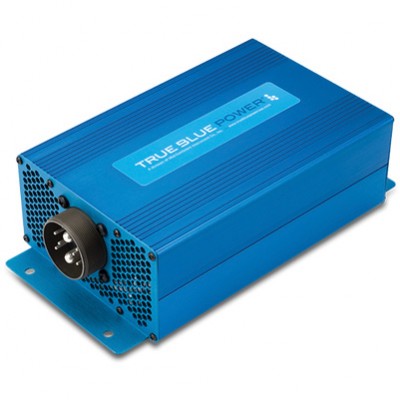

True Blue Power Converter 6432001-1
$13995.30/Each
Price Includes GST
Part# 10-07617
MFR Model# 6432001-1
MFR Model# 6432001-1
Overview
| True Blue Power Converter 100-250VAC, 47-800Hz, 28 VDC Output 6432001-1 |
Features
- Supplies 2,000 watts of 28-volt DC power
- Lightweight — 9.9 lbs
- Input transient, temperature monitoring, short circuit and overload protection (up to 110% of rated load without damage)
- 88 – 90% efficiency
- Remote On/Off
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
- Model Number: TC2000
- Part Number: 6432001-1
- Input Voltage:
- 100 – 250 VAC, 47 – 800 Hz
- Input Current: 21A Nominal
- Output Voltage: 28 VDC ± 0.4 VDC
- Output Power: 2,000 watts
- Weight: 9.9 lbs (4.5 kg)
- Dimensions: 14.00” L x 6.32” W x 3.46” H
- (355.60 mm L x 160.53 mm W x 87.88 mm H)
- Altitude: 35,000 ft
- Temperature: -67°F to +158°F (-55°C to +70°C)
- Mating Connector: 9018993-1
- 9018550-2
- Case: Anodized aluminum extrusion, blue
- Certification: FAA TSO-C71 certified
- RTCA DO-160G qualified
