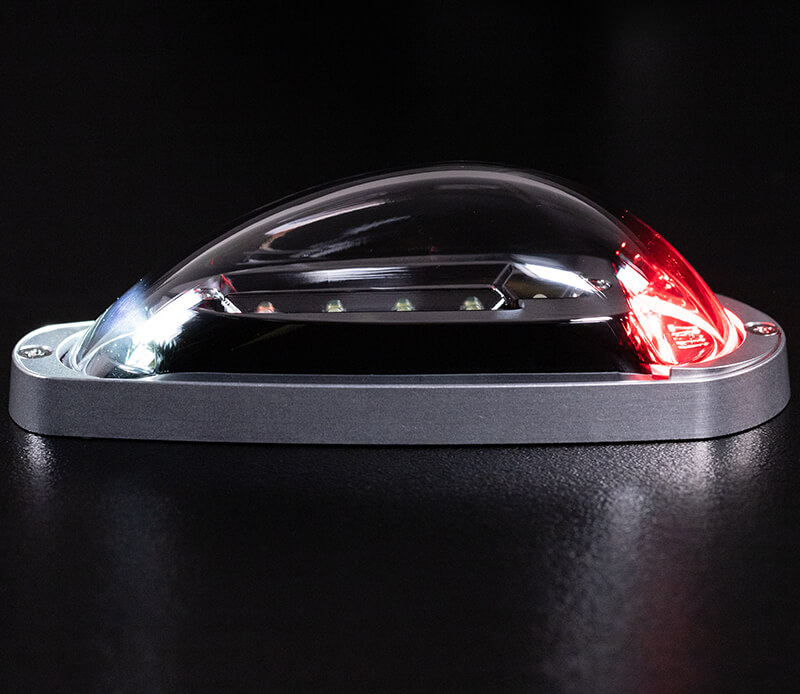

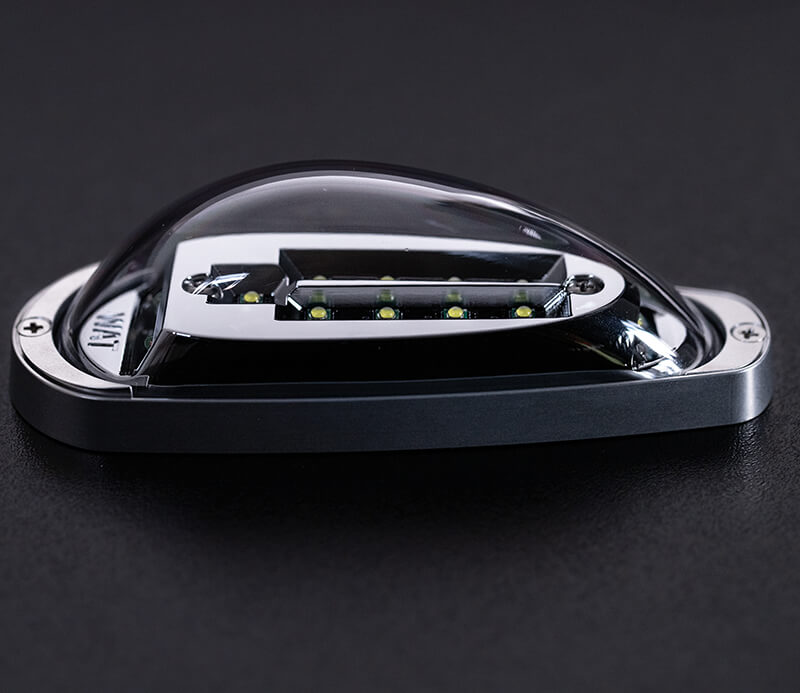

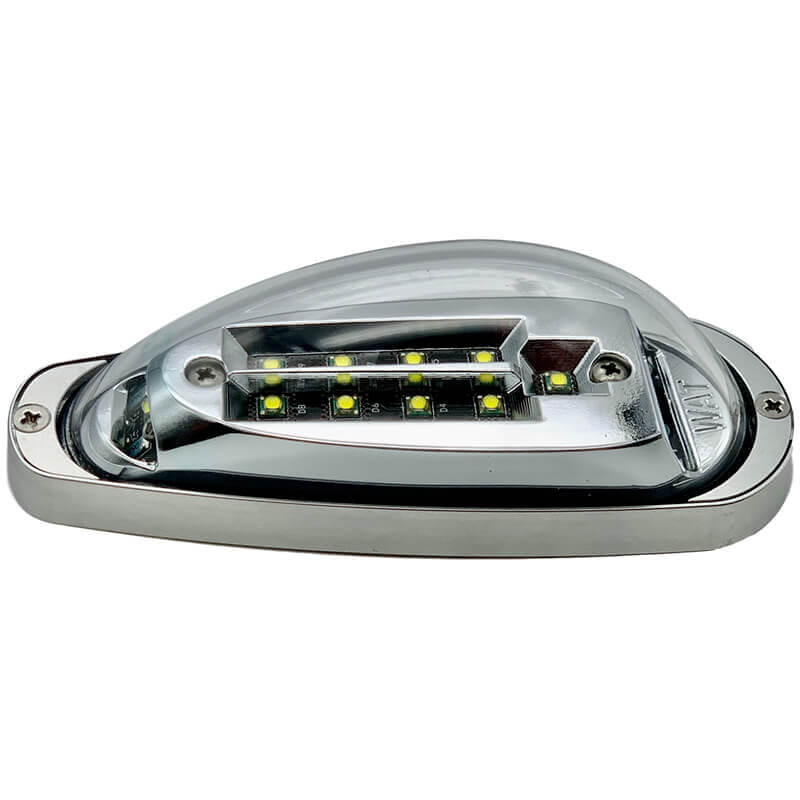

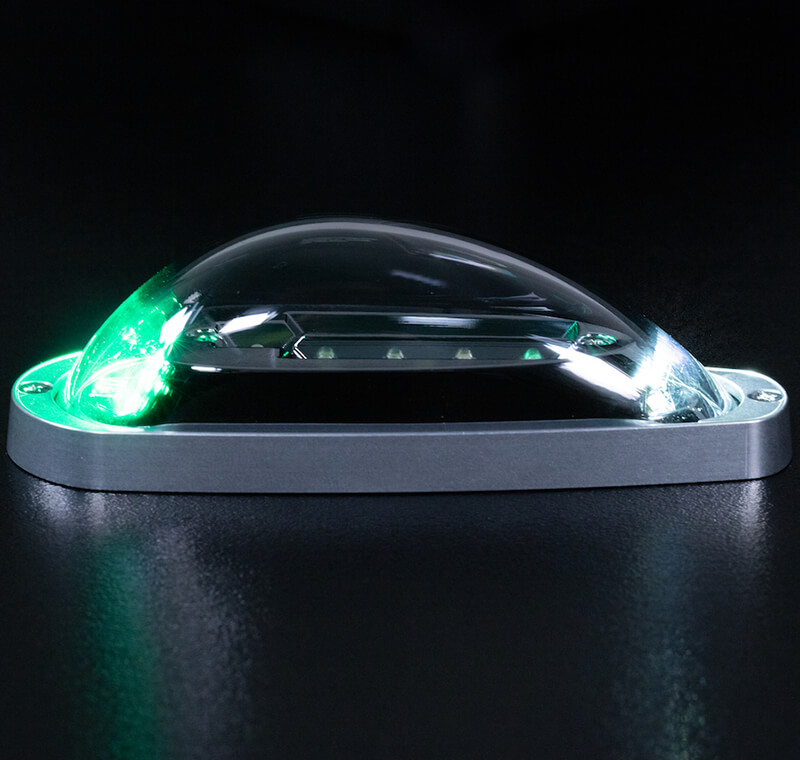

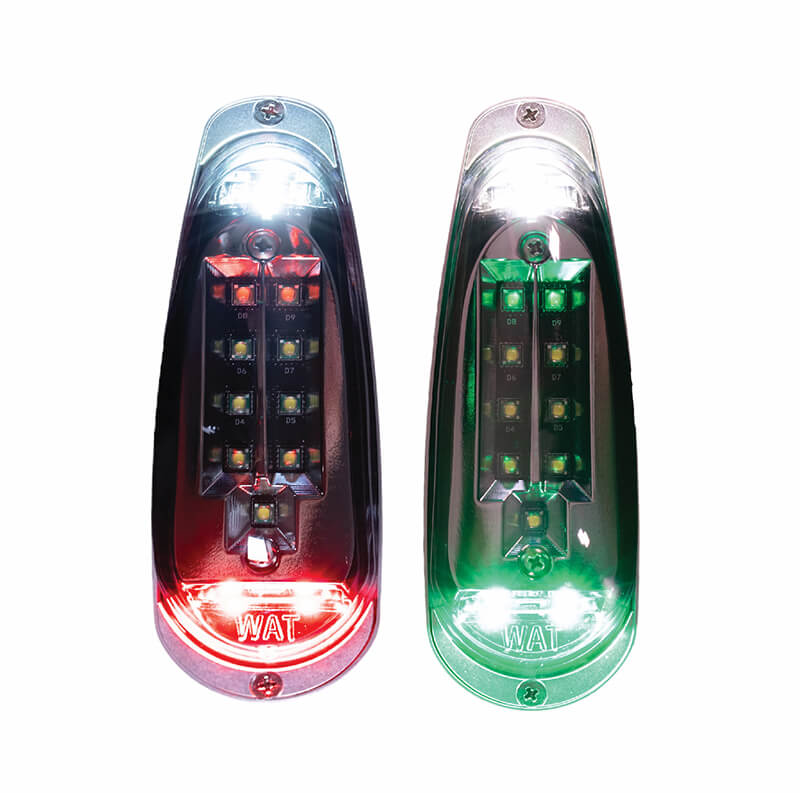

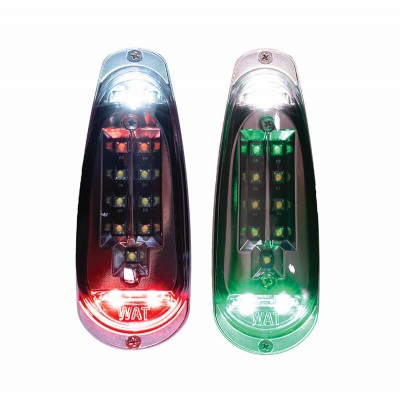

LED Wingtip and Tail Lighting for Experimental and Light Sport Aircraft LEDs are lightweight, low current and incredibly bright, vibration and moisture resistant... the ideal lighting technology for experimental and LSA aircraft. Download the drawing (PDF) Note: Product does not meet the requirements of 91.205 (c), required for night flight. |
(avg) | exposed Height x 1.6” (41mm) Width x 4.6” (116mm) Length. | ||||
(avg) | |||||
(avg) |
Installation was very straightforward. Lights are bright and effective
Whelen Microburst Plus Kit III MB3K
Extremely bright lights of excellent quality. Easy to fit. Highly recommended.
Whelen Microburst Plus Kit III MB3K
I’ve only bench tested so far but these are very bright and well made. I would have liked a mounting setup that didn’t require removing the lens but that’s a minor issue
Whelen Microburst Plus Kit III MB3K
Replaced my older strobes for these newer one on my RV6 . Easy to install plus they look great .
Whelen Microburst Plus Kit III MB3K
Whelen Microburst Plus Kit III MB3K
These were purchased to reduce the current draw from the original Whelen wingtip Nav/Strobes on my Rotax powered Ultravia Pelican PL. The 912ULS has only an 18 amp alternator, and the old strobe power paack and halogen lights consumed over half of that. The Microburst Plus LED set uses only a fraction of that. Great product for Rotax powered experimentals.
Whelen Microburst Plus Kit III MB3K
Great navigation and LED strobes for Light Sport use. Full 360 visibility and no RI which I had with other LED lights.
Very overpriced no installation bolts included with kit Lights are very bright good quality
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per supplier: It needs power but notes say Self-contained (no external power supply needed). Basically an additional power supply is not needed. You can hook it straight into aircraft power.
The Microburst series does NOT have TSO approval. If you want a certified product then you will need to look at the ORION series. We offer it on our website, keyword search "Whelen Orion" to locate them.
This kit is sold as a pair. One for each side.
I attached the Whelen Aviation product warranty sheet to the web page under the "Documents" tab. Please review it there.
The ampere draw for the Whelen Microburst III, part number 11-08473, is as follows: .66 amps for position lights and 1.2 amps for anti collision light.
The nav and strobe lights have separate power leads available. Typically these are wired in a two switch configuration.
The direct replacement for the A600 series is the Whelen Orion 600 series.
No, shielded wiring is not required.
Yes, these kits have rear facing white nav lights.
Per Whelen: It does not meet the requirements for the coverage and light outputs for 91.205 night flight operations. The Orion series does meet those requirements.
