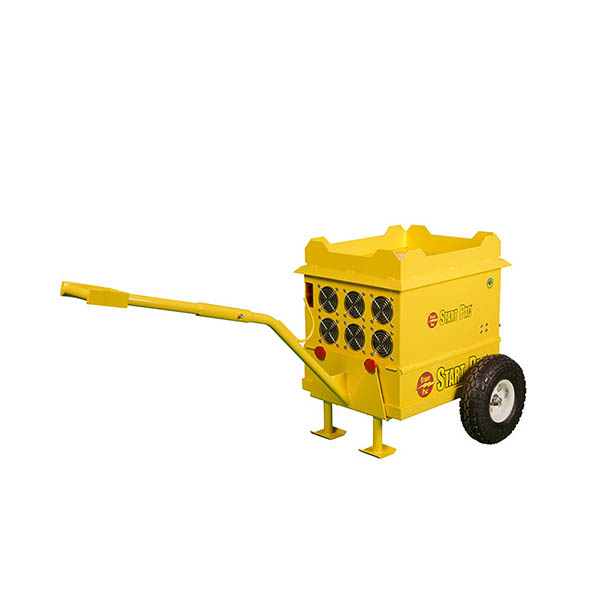

Start Pac Quick Charge Ground Power Unit 24 Volts - 3324Qc
Select Amp:
105 amp200 amp300 amp400 ampPrice Includes GST
Overview
|
These ground power units are designed to perform starting, powering up aircraft systems and maintenance functions. When connected to AC power, the depleted batteries can be charged in a matter of hours with the built in power supply/battery charger. The 3324 contains a full 24-volt battery bank for starting and a large power supply to provide a continuous current at 28.5 Volts DC for maintenance. This will satisfy the ground power requirements of most business jets, and includes on-board air conditioning and other high draw aircraft systems. |
Features
- The GPU is rated at 2800 peak starting amps and a continuous 105 amps DC output when connected to a 220 Volt AC source. This unit has a large battery capacity (52Ah) that will allow extended usage time when no AC power source is available.
- The 3324QC 105 amp weighs 200 Lbs. and is pulled by hand or tug. Locking the handle in an upright position sets the GPU brake.
- Always recharge the GPU until charger green light appears. Once charged, it is not necessary to leave the unit turned on. If a heater is installed, leave unit plugged in.
Specifications
Batteries- 26 - 52 Amp Hours at 10 hour rate
- 24 Volt DC- 25.5 Volts at rest
- Sealed cells non- hazardous
- Valve regulated high amperage output lead acid
- 2300 - 2800 Peak Amps
- 105 - 400 amps DC continuous output at 28.5 Volts
- Battery recharge time from fully discharged – 1 - 2 hours
- AC Input – 220 Volts only
