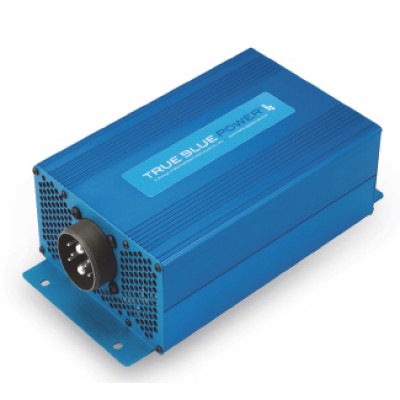

True Blue Power DC To AC Static Inverter 2000 Watts / 115 V / 60 Hertz
$14697.10/Each
Price Includes GST
Part# 11-16367
MFR Model# 6432000-1
MFR Model# 6432000-1
Overview
| The TI2000 Series Inverter provides 2,000 watts of wall outlet power to cabin and galley accessories, including entertainment systems, personal electronic devices, microwave ovens, and coffee makers. Smaller, lighter and more efficient than competing units and includes input transient, overload and short-circuit protection up to 150% of the rated load. |
Features
- Supplies 2,000 watts of wall outlet power
- Ideal for emergency medical equipment, special mission and VIP cabin configurations
- Lightweight — 7.7 lbs
- 93% efficient
- Input transient, overload and short-circuit protection — up to 150% of rated load without damage
- Remote On/Off optional
- FAA TSO-C73 certified
- EASA ETSO-C73 certified
- RTCA DO-160G qualified
Specifications
- Input Voltage: 20 – 36 VDC
- Input Current: 80A at 28 VDC input
- Output Voltage: 115 VAC ± 3%
- Output Power: 2,000 VA
- Output Frequency: 60 Hz ± 0.1%
- Output Waveform: Single phase, true sine wave, < 3% total harmonic distortion
- Weight: 7.7 lbs (3.49 kg)
- Altitude: 55,000 ft
- Humidity: Tested to greater than 95% for 10 days, temperature cycle of 75° F to 160° F
- Temperature: -67°F to +158°F (-55°C to +70°C)
- Integral Cooling: Dual, electronically-controlled brushless fans
- Mating Connector: P/N 9018784-1 / P/N 9018550-2 (cable clamp / backshell)
- Case: Anodized aluminum extrusion, blue
- Certification: FAA TSO-C73 certified / EASA ETSO-C73 certified / RTCA DO-160G qualified
