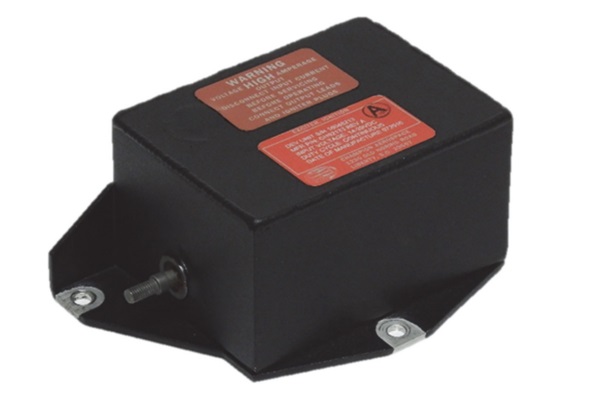

Champion Exciter CH92133
$4332.90/Each
Price Includes GST
Part# 08-19064
MFR Model# CH92133
MFR Model# CH92133
Overview
|
The Champion Aerospace Ignition Exciter Assembly, Model CH92133 is eligible by FAA-PMA for use on the Rolls-Royce Model 250 Series I, II, III & IV turbine engines as approved for replacement of the following exciter models:
Rolls-Royce
|
Features
- The exciter consists entirely of solid state circuitry with no “wear out”
- characteristics to ensure consistent performance and long life
- The exciter does not contain radioactive materials as these materials are not
- necessary for operational stability
- The exciter presents the same footprint, form and weight as the OEM part so
- that installation and the weight/balance of the airframe is not affected
Specifications
- Input Power:
- 14-30 VDC
- 1.1A typical, 1.5A (max.)
- Operational duty cycle: Continuous @ 185°F (85°C)
- Operational Temp. Range: -54 to +121°C
- Spark Rate:
- 5 to 15 sparks/second
- (Input voltage dependent)
Benefits
- Vibration tested to 35g for 9 hours, 3 axis (Sinusoidal)
- Shock tested to 30g, 3 axis (Saw-tooth impulse)
- High temperature endurance tested at 250°F (121°C) 300 hours
- Low temperature tested at -65°F (-54°C)
- Tested for continuous operation at 26,000 ft. (7,925 m) equivalent altitude
- EMC tested per RTCA/DO-160E, radiated and conducted emissions
- Durable, environmentally resistant polyurethane finish
Competitive Analysis
| Comparison to the OEM Ignition Exciter – Design Features | |
|---|---|
| Unison Ignition Exciter | Champion Ignition Exciter |
| PN 10-614950-1 | PN CH92133 |
| Housing – Solder sealed | Housing – Welded |
| Weight – 1.4lbs | Weight – 1.4lbs |
| HV switch – Spark Gap | Solid State Spark Gap (S3GTM) |
| Life limited | Non-limited life |
| Radioactive "Krypton 85" | Radiation free |
| Repairable – No | Repairable – Yes |
| Performance Comparison to the OEM ignition exciter | ||
|---|---|---|
| Characteristic | Unison Ignition Exciter | Champion Ignition Exciter |
| Energy at the plug: | 0.4 joules nominal | 0.4 joules nominal |
| In-rush current at 14Vdc: | 29A (peak) | 26A (peak) |
| Input current at 29Vdc: | 1.3A rms (typical)* | 1.1A rms (typical)* |
| Spark rate at 14Vdc: | 4.6 spk/sec. | 5.6 spk/sec. |
| Spark rate at 29Vdc: | 12.3 spk/sec. | 12.1 spk/sec. |
| Time to first spark at 14Vdc: | 215 msec. nominal | 200 msec. nominal |
| Output current: | 825A (peak) | 805A (peak) |
| Output voltage: | 11.3kV (peak) | 9.5kV (peak) |
| Spark duration: | 36µsec. Nominal | 40µsec. Nominal |
