Homebuilders Oil Breather / Separator
MFR Model# 10570
Overview
|
These 4 inch diameter reservoirs have beaded outlets for 5/8" I.D. hoses and a mounting flange for easy firewall attachment. These units are of a new, improved design and the reservoir body is now a spun aluminum bowl for optimum performance. The oil separators minimize oil loss and allow free breathing of the engine. They are recommended for experimental aircraft use only and are not STCd for any certificated aircraft.
Made in USA |
Specifications
Reviews
For my experimental, this worked just fine. Quick, easy install.
Verified Purchase
ACS Oil Breather Separator 10570
Good product for experimental aircraft.
Verified Purchase
ACS Oil Breather Separator 10570
Well made
Verified Purchase
ACS Oil Breather Separator 10570
I have been using this oil separator for 17 years on my prototype turbocharged Yamaha snowmobile and it runs still today flawlessly thanks I would have posted a photo thanks GREGGO
Works well on my RV. Would be nicer if smaller.
Nice product with quality construction. My one complaint is that the housing is not square with the mounting plate. Mine is clocked a little to the side so that in order for the 3/8 drain on the bottom to be center on the bottom it must be askewed a bit. Probably 1/4 to 3/8 off center at both mounting holes.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

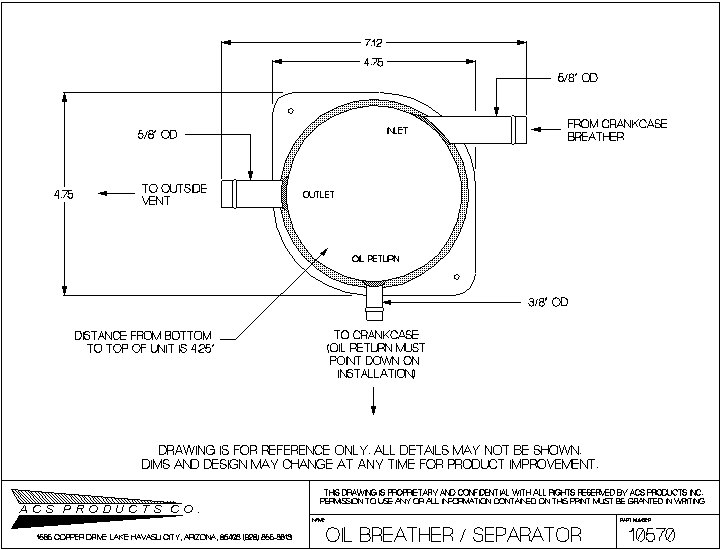

We have added the installation and specification drawing to the "Specifications" tab of this web page. Please review it.
Approx. 0.50 lbs.
Unfortunately there is not an engine specific application guide available for this product.
