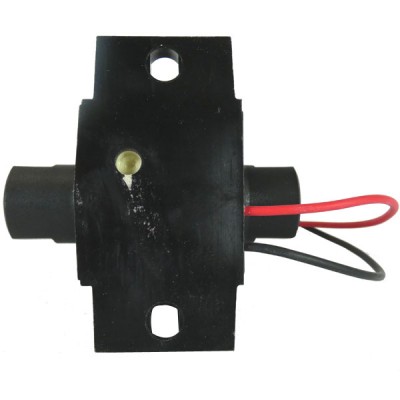

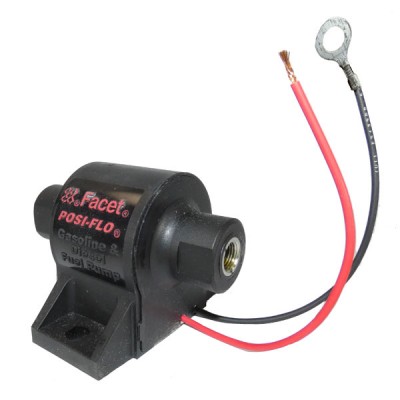

Facet Posi-Flo Solid State Fuel Pumps

43 Reviews 6 Answered Questions
From $47.50 to $57.75
Prices below incude GST
Main Image
Main Image
Main Image
Description Part Number Price Buy
60106 Facet Posi-Flo Fuel Pump
05-10856
$62.43
Quantity
Facet Posi-Flo Pump Kit FeP04Sv 60245
05-10880
$63.53
Quantity
60300 Facet Posi-Flo Pump
05-06862
$60.23
Quantity
60301 Facet Posi-Flo Pump
05-06863
$60.23
Quantity
Facet 60302 Posi-Flo Pump
05-06864
$60.23
Quantity
60303 Facet Posi-Flo Pump
05-10881
$52.25
Quantity
60304 Facet Posi-Flo Pump
05-10882
$60.23
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Note: Facet fuel pumps are not FAA approved and are not intended for aircraft use.

Fuel Compatibility: All models of the Facet Posi-Flo Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.

Reliability: Proven on thousands of original equipment applications. No bearings, electrical contacts, or diaphragms to wear out or fatigue. Lasts four to five times longer than many other
electric pumps.

Easy to Install-Easy to Service:Two bolt installation plus the small size makes installation easy. For best results, mount the pump close to the fluid or fuel tank and below the liquid level.

Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

Specifications

  • 12 inches minimum dry lift
  • 23 - 40 GPH
  • 1.5 - 10 PSI
  • ESD compliant
  • 1.5 amp average
  • Diesel Priming and Self Regulating
  • Light-Weight - Compact
  • Internal 3.5 amp fuse
  • Quiet valve - 65Db


PN OEM PN Description Volts PSI Max-
Min		 GPH Fitting
Size		 Lift Min.
Dry		 Check
Valve		 Position Shut Off
Valve
05-10856 60106 Facet Psi-Flo Fuel Pump 12 7.0-4.0 32 1/8 - 27 INT 12" N N
05-10880 60245 Pump Kit- (2ea.) Straight Fuel Fittings 12 4.0-1.5 23 1/8 - 27 INT 12" N N
05-06862 60300 Facet Posi-Flo Fuel Pump 12 4.0-2.5 20 1/8 - 27 INT 50" Y N
05-06863 60301 Facet Posi-Flo Fuel Pump 12 5.0-3.5 30 1/8 - 27 INT 50" Y N
05-06864 60302 Facet Posi- Flo Fuel Pump 12 7.0-5.0 32 1/8 - 27 INT 50" Y N
05-10881 60303 Facet Posi-Flo Fuel Pump 12 10.0-7.0 34 1/8 - 27 INT 50" Y N
05-10882 60304 Facet Posi-Flo Fuel Pump 12 2.0-1.0 15 1/8 - 27 INT 24" Y N
05-01250 FEP04SV Pump Kit- Straight Fuel Fittings, Nuts, Screws, Fuel Filter 12 4.0-1.5 23 1/8 - 27 INT 12" N N

Reviews

Submit a Review

Great product. Great price. Fast shipping. Just installed on my airboat and is working great!

Nc M Verified Purchase

60303 Facet Posi-Flo Pump
November 27, 2024

very satisfied with the part and the service was fast, thank you

Jerry T Verified Purchase

60106 Facet Posi-Flo Fuel Pump
November 8, 2024

used in a ski doo mach z 1000 ,works perfect

Jerry T Verified Purchase

60106 Facet Posi-Flo Fuel Pump
November 8, 2024

Great product, Fast shipping, and fair price.

David L Verified Purchase

60106 Facet Posi-Flo Fuel Pump
September 23, 2024

I was told about these from a forum members. Because I could not find a fuel pump for a 1966 K Kohler engine. Best move I ever made.

Gary Verified Purchase

60304 Facet Posi-Flo Pump
August 23, 2024

This was exactly what we wanted. Fast. Easy. Reasonably priced.

Patricia T Verified Purchase

60301 Facet Posi-Flo Pump
August 15, 2024

Item does what it is supposed to do.

Don W Verified Purchase

60303 Facet Posi-Flo Pump
August 7, 2024

working well

Dennis L Verified Purchase

60304 Facet Posi-Flo Pump
August 2, 2024

Great little pump

Richard P Verified Purchase

60106 Facet Posi-Flo Fuel Pump
April 17, 2024

Very good product works exactly like it should. Fast and economical shipping couldn’t be more pleased

Daniel O Verified Purchase

60301 Facet Posi-Flo Pump
June 29, 2023

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this pump allow fuel passage when turned off? (depowered)

Per the tech data this unit has a check valve, but does not have a positive shut off, so it will flow in the normal flow direction when off.

Q: What is the distance of the mount holes center to center?

Regarding Part # 05-06862 (FACET 60300 POSI-FLO PUMP), the distance center to center of the mounting holes is approximately 2-1/2".

Q: What is the weight of the Posi Flow 60302 pump (part # 05-06864)?

This pump weighs approximately 0.79 lbs.

Q: Are these pumps compatible with kerosene and/or Jet A?

The tech data sheet does not mention these kerosene or Jet A specifically. It does mention that this unit can be used with gasoline, diesel, biodiesel, blended alcohol fuels, & fuel additives.

Q: The specs say 1/8 -27 INT. Will this pump accept an NPT fitting, for example a male NPT with a hose barb fitting, or must it be a flared fitting?

INT would represent internal (female) NPT thread. So yes, this will work. You can choose any kind of style fitting you like at the other end.

Q: FACET POSI-FLO SOLID STATE FUEL PUMPS: what comes with this unit as far as just the pump or are their barbs, bolts etc?

This is only the fuel pump.
