Image | Mfr PN | Description | Replacement for | PN | Price | Buy |
---|---|---|---|---|---|---|

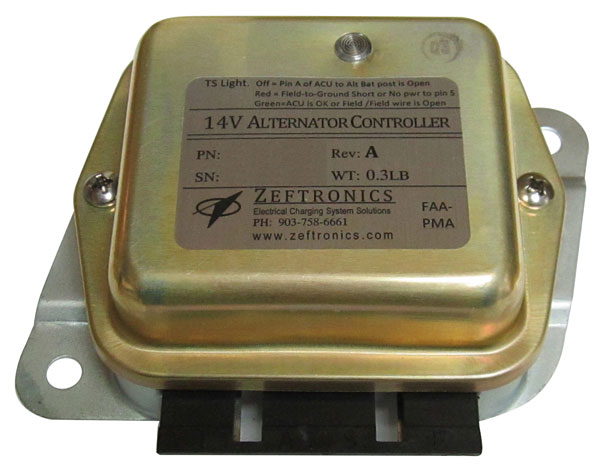

![]() | R15100 Rev A | 14V ACU With Ground Fault Protection, Trouble Shooting Light | Cessna:C611001-0101, 2, 0201. Beech: 33-380010 Electrodelta: VR600 FORD: D4FF-10316-BA, CA | 07-00622 | $339.90 | |
![]() | R1510N | 14V ACU With Ground Fault Protection, Adjustable, Dual Alternator Application | Prostolite: VSF7201, 2, 2S, 3, 3A, 3S, 4 Electrodelta: VSF7203A TCM: 649684-1 Piper: 550-383 | 07-00624 | $456.50 | |

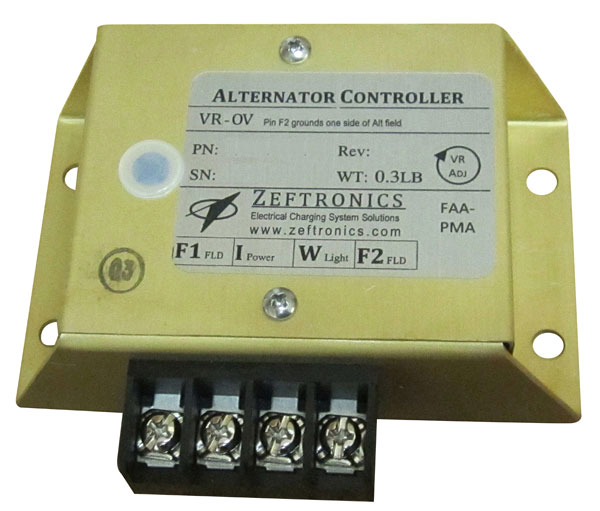

![]() | R15V0N | 14V ACU With Ground Fault Protection Low & Overvoltage light output & 16V OV OverVoltage Protection Built in | Prestolite: VSF7201, 2, 2S, 3, 3A, 3S, 4 Electrodelta: VSF7203A TCM: 649684-1 Piper: 550-383 Zeftronics: R1510N (ACU), V1510A (OVR) | 07-00630 | $620.40 | |

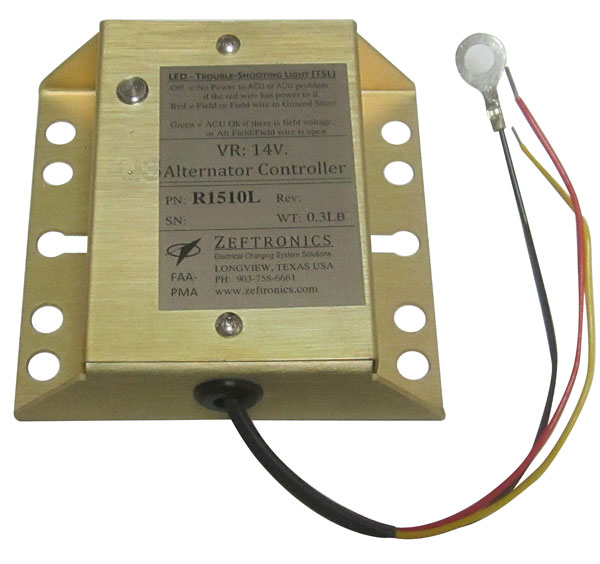

![]() | R1510L | 14V ACU With Ground Fault Protection, Trouble Shooting Light, Reduced Panel Light Flicker | Piper: 450-392, 484-121, 66804-03, 756-055, 484-088 Beech: 169-380063 Wico: X16300B, X17990 B00267-1, 2, B00331-1, 2 Delco Remy: 9000590, 1116393, 1116398 Electrodelta: VR200, A Commander: 1816110 Prestolite: FVR4404, 4224, 4011 RBM: 87-87102-21 Lycoming: LA-11357, 12747 | 07-00623 | $368.50 | |
![]() | R15V0L | 14V ACU With Ground Fault PRotection, Trouble Shooting Light, Reduced Panel Light Fliker & 16V OV OverVoltage Protection Built in | Piper: 557-337, 450-392, 484-121, 66804-03, 756-055, 484-088 B00371-1, 8, 14, B00267-1,2, B00331-1,2 Electrodelta: VR371, VR200,A Beech: 169-380063 Wico: X16300B, X17990 Delco Remy: 9000590, 1116393, 1116398 Commander: 1816110 Prestolite: FCR4004, 4224, 4001 RBM: 87-87102-21 Lycoming: LA-11357, 12747 Zeftronics: R1510L (ACU), V1510A (OVR) | 07-00629 | $491.70 | |

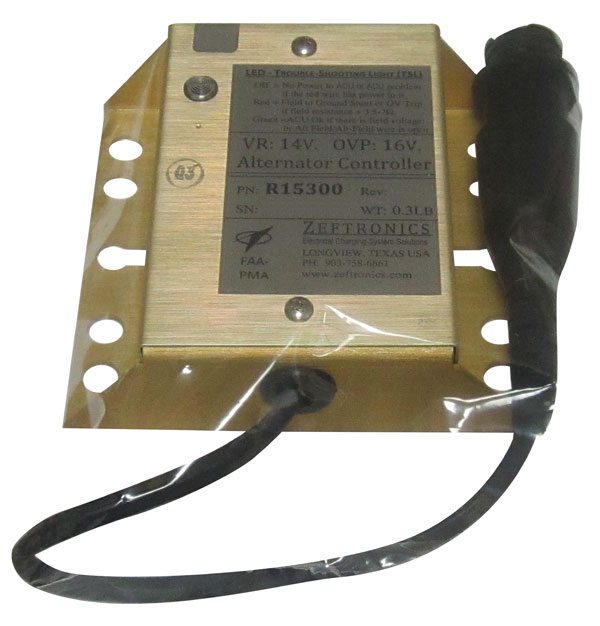

![]() | R15300 | 14V ACU With Ground Fault Protection, Trouble Shooting Light, Black Plastic Connector & 16V OV Over Voltage Protection Built in | Mooney: 800270-505, 880016-503 Electrodelta: VR415F DGR1-1 | 07-00625 | $579.70 | |

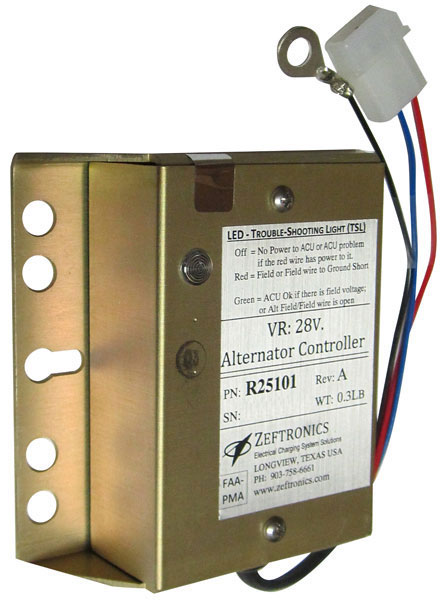

![]() | R25101 Rev A | 27.7V ACU Trouble Shooting Light, Field to Ground Fault Protection | Cessna: C611-004-0101, C61102-0102, 0105 Ford: C8FF/C6FF-10316-A TCM: 636147 Electrodelta: VR500-0101 | 07-00631 | $339.90 | |
![]() | R25102 Rev A | 28.8V ACU Trouble Shooting Light, Field To Ground Fault Protection | Cessna: C611004-0102 Electrodelta: VR500-0102 | 07-00632 | $349.80 | |

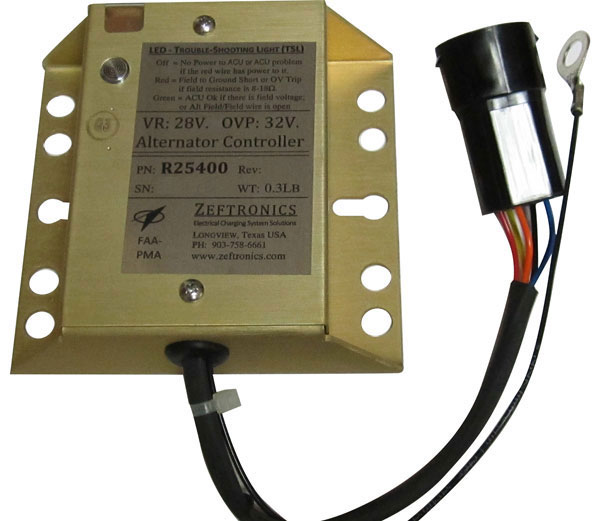

![]() | R25400 | 28V ACU Trouble Shooting Light, Ground Fault Protection, Low & OV Sensor Indication, Remote Voltage Sensor & 32V OV Over Voltage Protection | Cessna: C611005-0103, 0101, 0102 Electrodelta: VR515F, G, GA DGR3 | 07-00635 | $517.00 | |

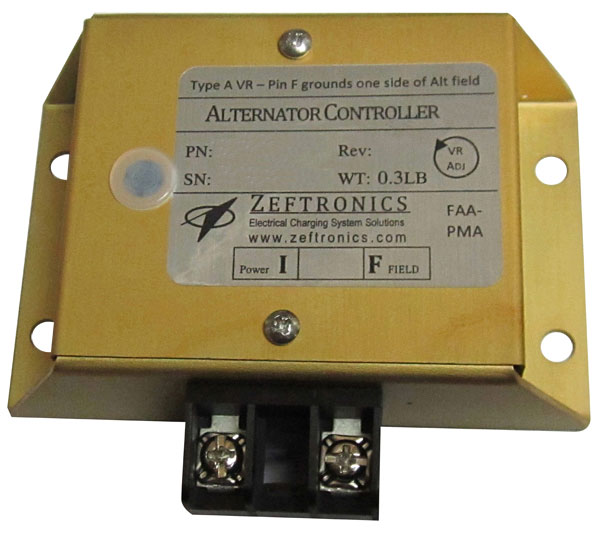

![]() | R2510N | 28V ACU With Ground Fault Protection, Adjustable, Dual Alternator Application | Prestolite: VSF7402A, 3S, 4 Piper: 550-381 Lycoming: LW10179, 77347 | 07-00633 | $467.50 |
Note: Manufacturer C of C not available on Zeftronics stocked units. Zeftronics C of C available via special order only. If certs are required, please add part # 07-00000 with your order (See Accessories). As a factory authorized Zeftronics distributor, we can assure you the fastest delivery and best prices on all of your Zeftronics engine accessory requirements. We carry the complete Zeftronics product line. If you do not see the product you need listed, please call us for price and availability. Complete information is on file, cross referencing Zeftronics part numbers to all OEM part numbers.If you are not sure what part number you need for your aircraft, please call us for immediate assistance. Download Aircraft Eligibility Chart in .pdf. Note: Please read wiring instructions carefully prior to installation of voltage regulators. Improper wiring will void warranty All returns subject to manufacturer's warranty inspection. For an accurate cross reference, OEM Part Number Required. For Aircraft Eligibility, download the Eligibility Chart |
Great product
Zeftronics Volt Reg R25101-A

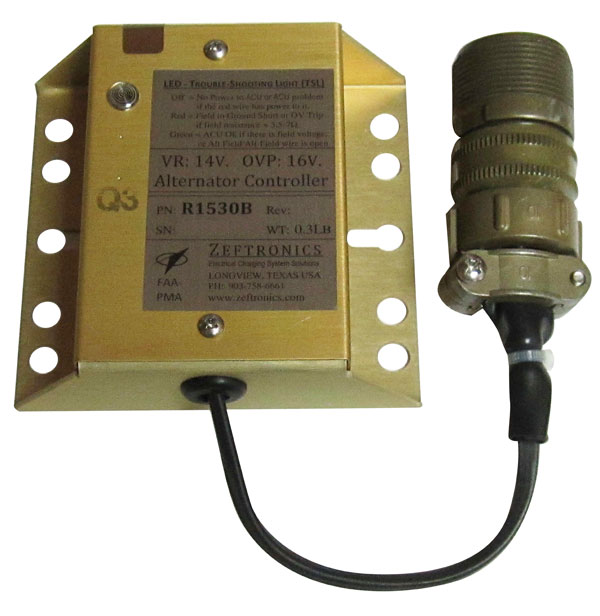

I have used Zeftronics regulators for years. I installed the R1530B in my Bonanza and still had the problem. I called Zeftronics tech support and they helped me trouble shoot the problem. Their tech support is second to none, first class. The tech representative was very patient and great to work with. I will be putting Zeftronics regulators on all my aircraft.
Zeftronics alway good, had to modify to connector of 2003 aircraft.
Zeftronics Volt Reg R1510L
Aircraft Spruce shipped on time and the R15100-A was an easy replacement for the old regulator in my Grumman Traveler.
Zeftronics Volt Reg R15100-A
Worked well to replace my failing regulator. So far, so good.
Zeftronics Volt Reg R15V0L
Works as expected. Quick shipment.
Zeftronics Volt Reg R1510L
Zeftronics Volt Reg R15V0L
The Zeftronics unit was really easy to install, good instructions included ans worked perfectly.
Zeftronics Volt Reg R15V0L
Zeftronics Volt Reg R15100-A
Thats what I needed
Zeftronics Volt Reg R25102-A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, since these parts are FAA-PMA approved, you would not need to get a field approval from the FAA after the installation. However, you would need to have it installed by FAA certified mechanic.
Warranty is 12 months or 600 hours from date of installation, whichever comes first.
Yes, the STC paperwork is included with the STC'd units.
No. This does not come with butt splice and wire termination.
No, this unit does not have the over voltage protection.
It does not, the R15V0N adds the over voltage protection.
