- Photo may represent series and not specific product
- SHARE
| Dash No. | MS No. | Dia. (in.) |
Length (in.) |
Recommended Drill Size |
Part No. | Price | Buy |
|---|---|---|---|---|---|---|---|
| AN535-00-2 | MS21318-1 | .060 | 1/8 | #55 (0.52) | 04-01246 | $0.09 | |
| AN535-00-3 | MS21318-2 | .060 | 3/16 | #55 (.052) | 04-01247 | $0.07 | |
| AN535-00-4 | MS21318-3 | .060 | 1/4 | #55 (.052) | MS21318-00-4 | $0.86 | |
| AN535-0-2 | MS21318-7 | .075 | 1/8 | #51 (.067) | 04-01248 | $0.07 | |
| AN535-0-3 | MS21318-8 | .075 | 3/16 | #51 (.067) | 04-01249 | $0.07 | |
| AN535-0-4 | MS21318-9 | .075 | 1/4 | #51 (.067) | MS21318-9 | $0.07 | |
| AN535-2-2 | MS21318-13 | .100 | 1/8 | #44 (0.86) | 04-01250 | $0.09 | |
| AN535-2-3 | MS21318-14 | .100 | 3/16 | #44 (0.86) | MS21318-2-3 | $0.07 | |
| AN535-2-4 | MS21318-15 | .100 | 1/4 | #44 (0.86) | MS21318-2-4 | $0.07 | |
| AN535-4-3 | MS21318-20 | .116 | 3/16 | #37 (.104) | 04-01251 | $0.09 | |
| AN535-4-4 | MS21318-21 | .116 | 1/4 | #37 (.104) | MS21318-4-4 | $0.09 | |
| AN535-4-5 | MS21318-22 | .116 | 5/16 | #37 (.104) | 04-01252 | $0.15 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview

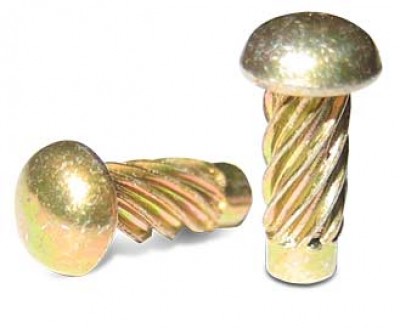

| Hardened steel screws to make permanent fastenings to ferrous and non-ferrous castings, heavy gauge steel, plastics, etc. Cadmium plated. |
Reviews
they are the wrong size diameter. I need .100
Verified Purchase
MS21318-15,SCREW AN535-2-4
Great rivets
Verified Purchase
MS21318-15,SCREW AN535-2-4
Great rivets, works perfectly
Verified Purchase
MS21318-9 SCREW,DRV AN535-0-4
Perfect fit, works great
Verified Purchase
Screw,Drive MS21318-21
Great rivets, if you use these you will never go back to the ones you were using
Verified Purchase
SCREW AN535-4-5 / MS21318-22
Very good quality screw rivets, fit perfectly,easy to use
Verified Purchase
Screw,Drive MS21318-21
Verified Purchase
AN535-00-2 SCREW MS21318-1
Verified Purchase
Screw MS21318-14 (AN535-2-3)
Verified Purchase
MS21318-15,SCREW AN535-2-4
Verified Purchase
MS21318-9 SCREW,DRV AN535-0-4
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These are measured from below the head to the tip.
