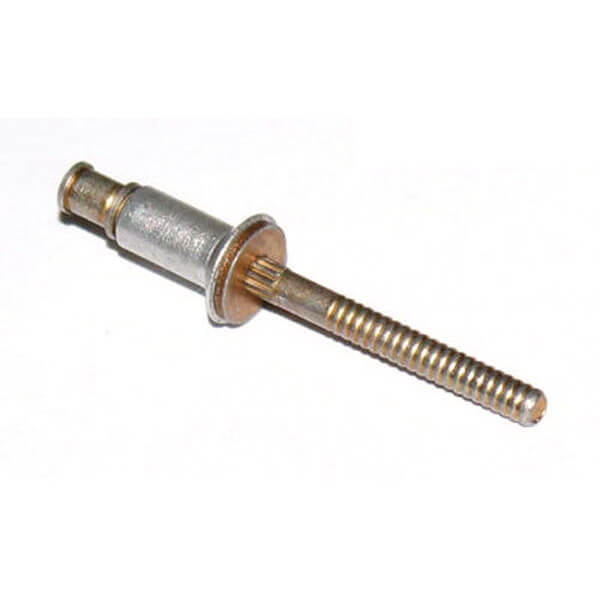

Cherry Max Rivets - CR3212 Countersunk Head
| Dash | Dia. | Grip Range | Part Number | Price | Price Per 100 | Buy |
|---|---|---|---|---|---|---|
| 4-2 | .126 | .063-.125 | CR3212-4-2 | $0.77 | $123.20 | |
| 4-3 | .126 | .126-.187 | CR3212-4-3 | $0.75 | $119.90 | |
| 4-4 | .126 | .188-.250 | CR3212-4-4 | $0.81 | $130.90 | |
| 4-5 | .126 | .251-.312 | CR3212-4-5 | $1.04 | $167.20 | |
| 4-6 | .126 | .313-.375 | CR3212-4-6 | $0.90 | $144.10 | |
| 5-2 | .157 | .065-.125 | CR3212-5-2 | $0.78 | $124.30 | |
| 5-3 | .157 | .126-.187 | CR3212-5-3 | $0.90 | $144.10 | |
| 5-4 | .157 | .188-.250 | CR3212-5-4 | $1.01 | $161.70 | |
| 5-5 | .157 | .251-.312 | CR3212-5-5 | $0.95 | $151.80 | |
| 5-6 | .157 | .313-.375 | CR3212-5-6 | $0.94 | $149.60 | |
| 6-10 | .189 | .563-.625 | CR3212-6-10 | $8.25 | $1336.50 |
Overview
|
Due to the large bulbed blind head, similar to a solid rivet, the Cherrylock and CherryMax rivets are especially suited for double dimpled or high vibration applications. They can be used as replacements for some solid rivets and are excellent for use in fiberglass or composites as the rivet spreads in a way that prevents crazing or cracking of the material. NOTE: CR3212 and CR3213 are nominal diameters. CR3242 and CR3243 are oversized diameters and measure 1/64" more than listed diameter. SUBJECT TO PRICE AND AVAILABILITY OF CHERRY BRAND RIVETS. EQUIVALENT RIVETS MAY BE FURNISHED. Install with the G-27 Hand Gun See Also: CherryMax Grip Gauge |
Reviews
Verified Purchase
Cherrymax Rivet CR3212-4-3
shipped fast and excellent product a+
Verified Purchase
Cherrymax Rivet CR3212-5-6
Verified Purchase
Cherrymax Rivet CR3212-4-4
Its a CherryMax rivet. Not much else you could ask for.
Verified Purchase
Cherrymax Rivet CR3212-4-2
Its a CherryMax rivet. Not much else you could ask for.
Verified Purchase
Cherrymax Rivet CR3212-4-3
Verified Purchase
Cherrymax Rivet CR3212-4-4
Verified Purchase
Cherrymax Rivet CR3212-4-2
Verified Purchase
Cherrymax Rivet CR3212-4-3
Verified Purchase
Cherrymax Rivet CR3212-5-2
Verified Purchase
Cherrymax Rivet CR3212-5-3
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, they do not have a shelf life.
No, there is no ordering minimum.
We sell these rivets each, as in per rivet. They are not sold by the lb.
You would use a standard countersink for an 1/8" rivet, like our part number 12-00880.
