Thread Dash | Thread Size | Part Number | Price | Buy |
---|---|---|---|---|
RH - 4 | 1/4-28 UNJF-3B | NAS509-4 | $8.58 | |
RH - 5 | 5/16-24 UNJF-3B | NAS509-5 | $7.48 | |
RH - 6 | 3/8-24 UNJF-3B | NAS509-6 | $5.06 | |
RH - 7 | 7/16-20 UNJF-3B | NAS509-7 | $9.35 | |
RH - 8 | 1/2-20 UNJF-3B | NAS509-8 | $10.92 | |
LH - L4 | 1/4-28 UNJF-3B | NAS509L4 | $2.75 | |
LH - L5 | 5/16-24 UNJF-3B | NAS509L5 | $9.68 | |
LH - L6 | 3/8-24 UNJF-3B | NAS509L6 | $5.88 | |
LH - L7 | 7/16-20 UNJF-3B | NAS509L7 | $4.29 | |
LH - L8 | 1/2-20 UNJF-3B | NAS509L8 | $10.86 |
Material - 4130 Alloy Steel Per AMS-S-6758 Finish - Cad Type II, Class 2 Per AMS-QQ-P-416 Heat Treat- 150 KSI Min Per AMS2759 Hardness - 34-38 HRC |

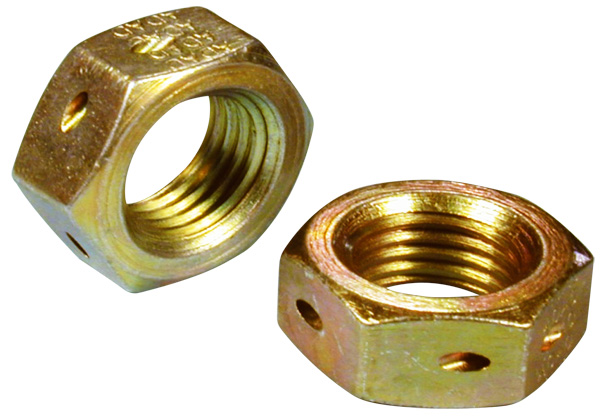

NAS509-4 Drilled Hex Nut
NAS509-5 Drilled Hex Nut
