MS35333 & MS35335 Stars Lock Washers
| Type | Size | Cad Plated MS Number |
Buy Cad. Plated | Stainless MS Number |
Buy Stainless |
|---|---|---|---|---|---|
| Type A | 6 | MS35333-37 | $0.02 | MS35333-71 | $0.15 |
| Type A | 8 | MS35333-38 | $0.03 | MS35333-72 | $0.09 |
| Type A | 10 | MS35333-39 | $0.02 | MS35333-73 | $0.07 |
| Type A | 1/4 | MS35333-40 | $0.03 | MS35333-74 | $0.15 |
| Type A | 5/16 | MS35333-41 | $0.08 | MS35333-75 | $0.23 |
| Type A | 3/8 | MS35333-42 | $0.11 | MS35333-76 | $0.35 |
| Type A | 7/16 | MS35333-43 | $0.13 | MS35333-77 | $0.40 |
| Type A | 1/2 | MS35333-44 | $0.19 | MS35333-78 | $0.85 |
| Type A | 5/8 | MS35333-46 | $0.26 | -- | -- |
| Type B | 6 | MS35335-30 | $0.04 | MS35335-58 | $0.12 |
| Type B | 8 | MS35335-31 | $0.03 | MS35335-59 | $0.12 |
| Type B | 10 | MS35335-32 | $0.03 | MS35335-60 | $0.15 |
| Type B | 1/4 | MS35335-33 | $0.06 | MS35335-61 | $0.36 |
| Type B | 5/16 | MS35335-34 | $0.09 | MS35335-62 | $0.34 |
| Type B | 3/8 | MS35335-35 | $0.13 | -- | -- |
| Type B | 1/2 | MS35335-37 | $0.15 | -- | -- |
| Type B | 9/16 | MS35335-38 | $0.31 | -- | -- |
| Type B | 3/4 | MS35335-40 | $1.43 | -- | -- |
| Type B | 7/8 | MS35335-41 | $0.65 | -- | -- |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview

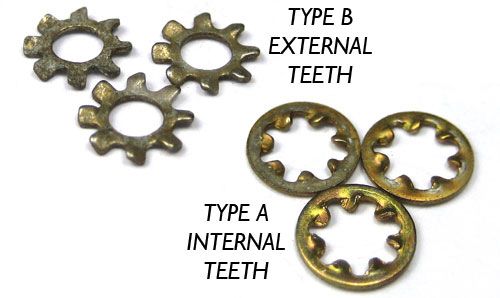

| Provide efficient locking action by spring tension and biting action of tapered twisted teeth. Made of 1050 spring steel and cadmium plated per specification QQ-P-416A, Type II, Class 3. Available with internal teeth (Type A) or external teeth (Type B) |
Reviews
Verified Purchase
Washer AN936-B416 (MS35335-33)
Verified Purchase
Stainless Steel Lock Washer MS35333-73
Verified Purchase
Washer AN936-B416 (MS35335-33)
Verified Purchase
Stainless Steel Lock Washer MS35333-73
Verified Purchase
Washer AN936-B416 (MS35335-33)
*****
Verified Purchase
Washer AN936-B416 (MS35335-33)
Verified Purchase
Stainless Steel Lock Washer MS35333-73
Verified Purchase
Stainless Steel Lock Washer MS35333-73
Verified Purchase
Stainless Steel Lock Washer MS35333-73
Aircraft quality.
Verified Purchase
Washer,Lock MS35335-58 Type B Stainless Steel
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
That is the ID of the washer or essentially the size of the screw that goes with it.
The thickness is .052" min to .060" max.
