Part No. | Old AN520R Dash No. |
Dia. & Thread Size |
Length (in.) | Price | Buy |
---|---|---|---|---|---|
MS35207-260 | -10R5 | 10-32 | 5/16 | $0.09 | |
MS35207-261 | -10R6 | 10-32 | 3/8 | $0.12 | |
MS35207-262 | -10R7 | 10-32 | 7/16 | $0.12 | |
MS35207-263 | -10R8 | 10-32 | 1/2 | $0.11 | |
MS35207-264 | -10R10 | 10-32 | 5/8 | $0.15 | |
MS35207-265 | -10R12 | 10-32 | 3/4 | $0.18 | |
MS35207-266 | -10R14 | 10-32 | 7/8 | $0.15 | |
MS35207-267 | -10R16 | 10-32 | 1 | $0.15 | |
MS35207-268 | -10R20 | 10-32 | 1-1/4 | $0.14 | |
MS35207-269 | -10R24 | 10-32 | 1-1/2 | $0.22 | |
MS35207-270 | -10R28 | 10-32 | 1-3/4 | $0.20 | |
MS35207-271 | -10R32 | 10-32 | 2 | $0.21 | |
MS35207-278 | -416R7 | 1/4-28 | 7/16 | $0.19 | |
MS35207-279 | -416R8 | 1/4-28 | 1/2 | $0.14 | |
MS35207-280 | -416R10 | 1/4-28 | 5/8 | $0.23 | |
MS35207-281 | -416R12 | 1/4-28 | 3/4 | $0.20 | |
MS35207-283 | -416R16 | 1/4-28 | 1 | $0.20 | |
MS35207-285 | -416R24 | 1/4-28 | 1-1/2 | $0.48 |

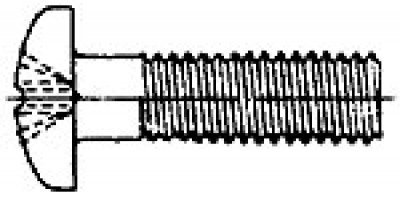

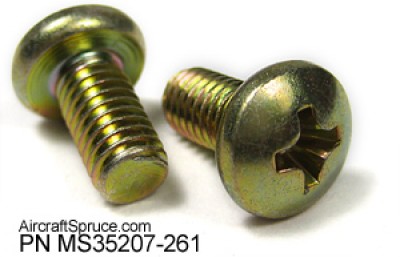

These pan head machine screws have 55,000 psi minimum tensile strength and are cadmium plated to Specification QQ-P-416, Type 2, Class 3. Manufactured from carbon steel per Federal Standard #66. |
