Home / Hardware / Fasteners / Camloc /Camloc Receptacles
Main Image

Camloc Receptacles

17 Reviews 5 Answered Questions
From $4.55 to $8.95
Prices below incude GST
Main Image
Description Part No. Price Buy
2600/2700 Series - Fixed Depth, Rigid Receptacle,
Narrow Width, Plain Rivet Holes
212-12N
$9.35
Quantity
2600/2700 Series - Fixed Depth, Rigid Receptacle,
Narrow Width, Csk Rivet Holes
212-12ND
$7.65
Quantity
4002 series - Fixed Depth, Rigid,
Narrow Width, Plain Rivet Holes
214-16N
$9.85
Quantity

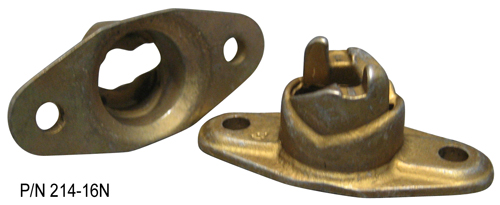

4002 Series - Fixed Depth, Rigid Receptacle,
Narrow Width, Csk Rivet Holes
214-16ND
$5.00
Quantity
4002 Series - Fixed Depth, Floating,
Plain Rivet Holes
244-16
$9.79
Quantity
Subtotal $0.00
Add to Wishlist

Overview

2600 Series - Small enough to fit in limited mounting space and light weight. These Camloc fasteners have a 600# ultimate tensile load capacity.

4002 Series - The Modern Standard in Quick Release Fastening Systems. They have an 800# working strength and 1050# Ultimate Tensile load capacity.

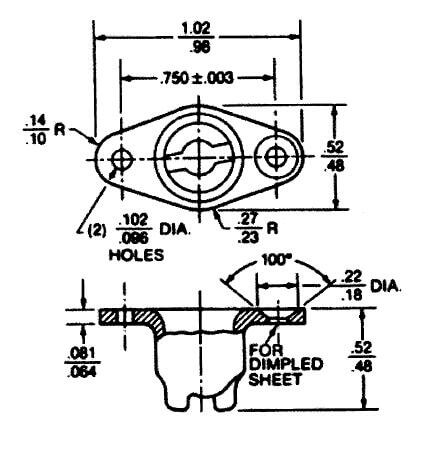

Drawing

212-12 Series


  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Items work as they should.

Larry E Verified Purchase

Camloc 2600/2700 Recpt 212-12N
September 7, 2024

Excellent quality

Mark F Verified Purchase

Camloc 2600/2700 Recpt 212-12N
September 2, 2024

Easy to install with rivet squeezer

Donald R Verified Purchase

Camloc 2600/2700 Recpt 212-12N
August 25, 2024

Excellent product. It fit perfectly and was just what I needed.

James B Verified Purchase

Camloc 2600/2700 Rcpt 212-12Nd
April 25, 2024

Absolutely perfect

Colin C Verified Purchase

Camloc Receptacle 244-16
February 16, 2024

Ralph L Verified Purchase

Camloc Receptacle 244-16
October 4, 2023

Works

Mike L Verified Purchase

Camloc Receptacle 244-16
September 8, 2022

Way too expensive

Edward D Verified Purchase

Camloc 2600/2700 Recpt 212-12N
July 26, 2022

Stara T Verified Purchase

Camloc 2600/2700 Recpt 212-12N
February 16, 2022

very well. meets the need

Guillemette A Verified Purchase

Camloc 2600/2700 Recpt 212-12N
November 5, 2021

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the rivet spacing for these 212-12 receptacles? I'm looking to replace some worn out Airloc fasteners. Thanks

The rivet spacing is 3/4" from center hole to center hole on the unit.

Q: What is the difference between the Camloc receptacles that take plain and CSK rivets?

Regarding 214-16N, this would take a plain rivet for the mounting holes. For P/N# 214-16ND, this would use a countersunk (CSK) rivet for the mounting holes. The mounting holes are laid out differently for the type of rivet it requires.

Q: What is the rivet spacing on the 214-16N receptacle?

The rivet spacing is 1" +/- .003" .

Q: Is there any standards or certification this product complies?

Per the vendor certs, this meets TSO C148.

Q: In maximum grip length, must I also calculate depth of receptacle?

You would just need to measure the total material thickness.
