18-8 Stainless Steel Ring-Grip Quick-Release Pin - 3-16 Diameter

0 Reviews 0 Answered Questions
$7.15/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 04-04257
MFR Model# 98404A004

Overview

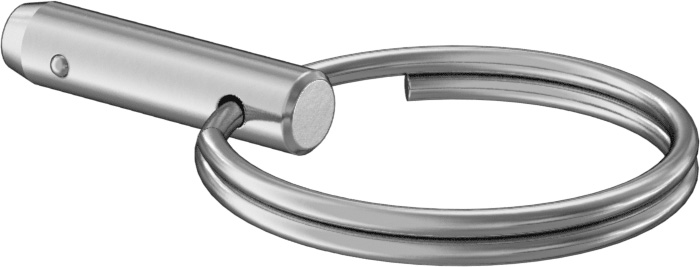

The smooth ring handle on these pins won't catch on parts. A spring-loaded, nonlocking retaining ball pops out to hold pins in place. The hole should be as close to the diameter as possible, but not larger than the diameter at extended ball height. The ends are chamfered for easy insertion. Breaking strength is measured as single shear, which is the force required to break the pin into two pieces. Also known as faspins.

18-8 stainless steel pins offer a balance of strength and corrosion resistance. They may be mildly magnetic.

Specifications

  • Pin Type: Quick Release
  • End Type: Spring-Loaded Ball
  • Head Type: Ring
  • Shaft Type: Plain
  • End Shape: Chamfered
  • System of Measurement: Inch
  • Material: 18-8 Stainless Steel
  • Usable Length: 3/8"

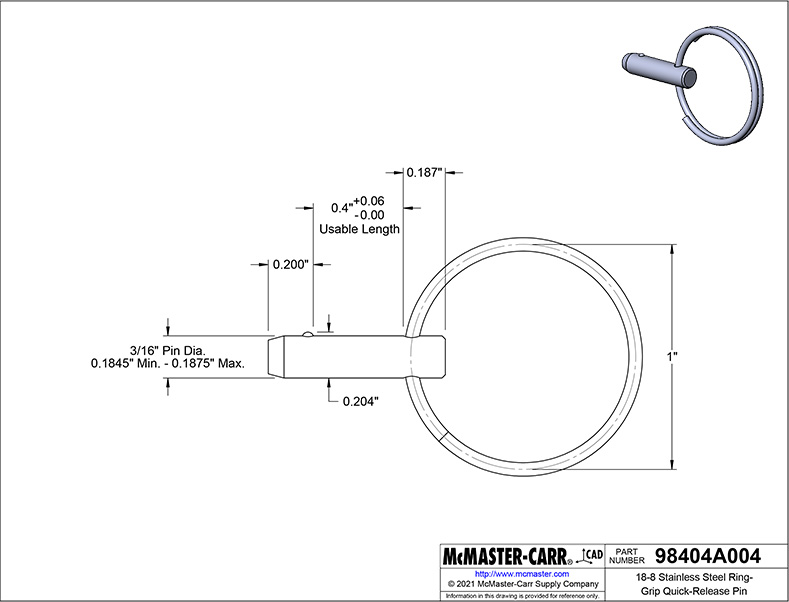

  • Diameter: 3/16"
  • Diameter Tolerance: -0.003" to 0"
  • Diameter at Extended Ball Height: 0.204"
  • Min. Hardness: Rockwell B85
  • Breaking Strength: 2,300 lbs.
  • Number of Retaining Balls: 1
  • Ball Material: 316 Stainless Steel
  • Spring Material: 316 Stainless Steel
  • Handle Material: 316 Stainless Steel
  • Lock Type: Nonlocking
  • Passivation: Not Passivated
  • RoHS: RoHS 3 (2015/863/EU) Compliant
  • REACH: REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant
  • DFARS: Specialty Metals Compliant (252.225-7008)
  • Country of Origin: United States
  • USMCA Qualifying: No
  • Schedule B: 731829.0000
  • ECCN: EAR99
